JCB

VM46D

Smooth Drum Roller

Operating Weight
10,141 lb
Max Speed
7.9 mph
Drum Width
55 in
Gross Power
60.0 hp
All smooth drum rollers

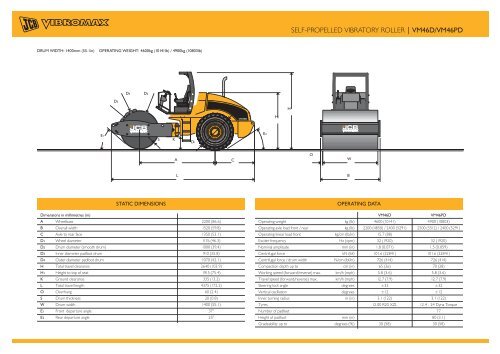

JCB VM46D Smooth Drum Roller
1 / 5
Image 1 of 5
Image: yumpu.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,141 lb
Max Speed7.9 mph
Fuel Capacity47.6 gal
Operating Voltage12 V
Hydraulic System Fluid Capacity15.9 gal
Engine Oil Capacity2.2 gal
Alternator Supplied Amperage60 A
Cooling System Fluid Capacity3.7 gal

Engine

Engine specifications
Engine ModelB 3.3
Displacement199 in³
Power Measured @2,200 rpm
Gross Power60.0 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab104 in
Wheelbase7 in
Overall Length14 in
Overall Width60 in

Tires & Wheels

Tires & Wheels specifications
Tires12.00R20 XZL

Drum

Drum specifications
Drum Width55 in
Drum Diameter39 in
Vibration Frequency 132 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High22,841 lb
Static Linear Load7 lb-ft
