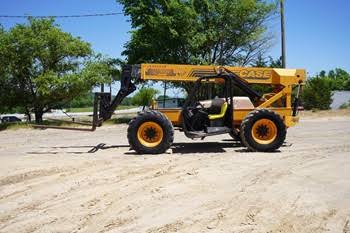

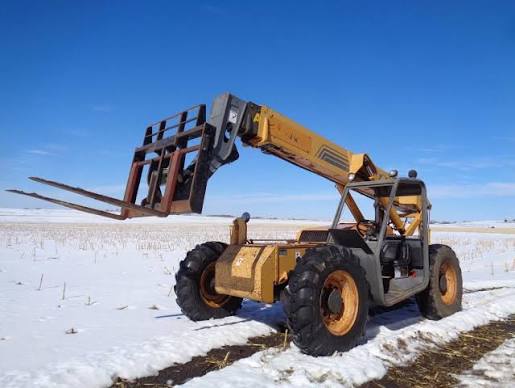

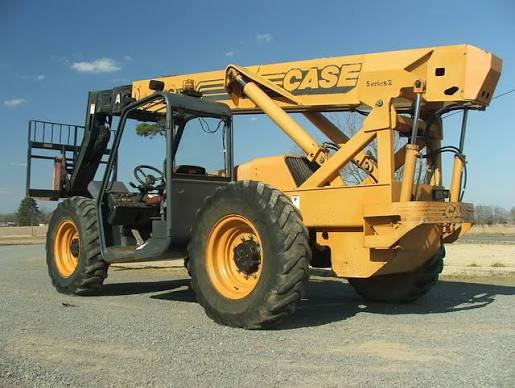

Case 686G Forklift
1 / 5
Image 1 of 5
Image: ebay.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight18,300 lb
Fuel Capacity20.0 gal
Tire Size13.00x24 12PR L2/G2
Operating Voltage12 V
Hydraulic System Fluid Capacity39.9 gal
Alternator Supplied Amperage62 A

Engine

Engine specifications
Engine Model4-390
Displacement239 in³
Power Measured @2,500 rpm
Gross Power80.0 hp
Net Power72.0 hp
Number of Cylinders4
AspirationNatural
Torque Measured @1,500 rpm
Max Torque198 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity34.0 gal/min
Pump Typeaxial piston

Dimensions

Dimensions specifications
Ground Clearance16 in
Wheelbase110 in
Width Over Tires103 in
Overall Height95 in
Length to Fork Face236 in
Turning Radius Outside Tires134 in

Transmission

Transmission specifications
Max Speed - Forward21.0 mph
Max Speed - Reverse21.0 mph
Transmission TypePower Shift
Number of Forward Gears3
Number of Reverse Gears3

Lift System

Lift System specifications
Max Lift Capacity6,700 lb
Max Lift Height433 in
Max Forward Reach247 in
Max Load at Max Height6,000 lb
Max Load at Max Reach1,700 lb

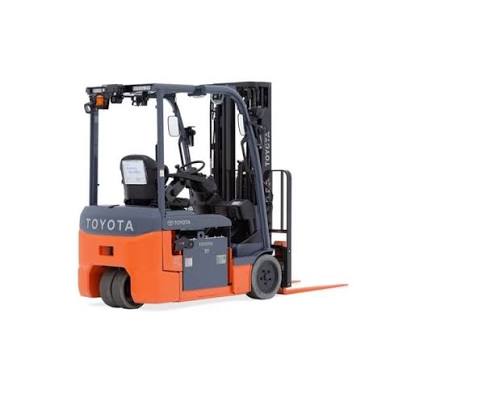

Comparable machines
