Case

70XT

Skid Steer Loader

Operating Weight
6,906 lb
Bucket Capacity
0.60 yd³
Max Speed
7.1 mph
Gross Power
79.0 hp
All skid steer loaders

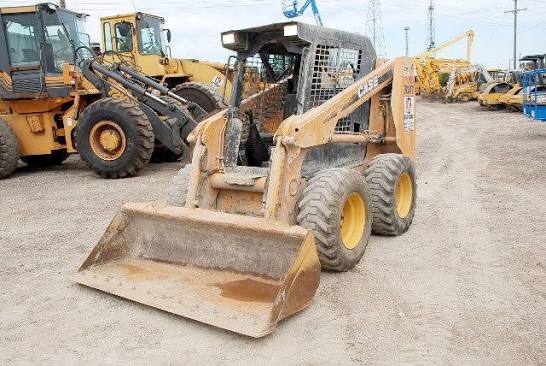

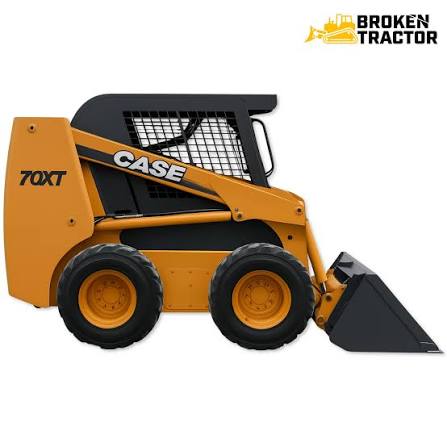

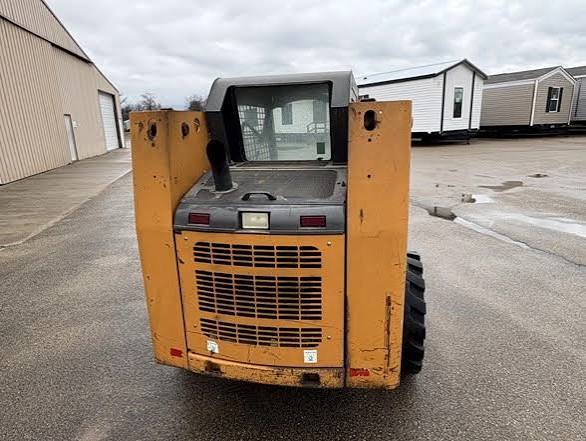

Case 70XT Skid Steer Loader
1 / 5
Image 1 of 5
Image: ebay.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,906 lb
Max Speed7.1 mph
Fuel Capacity22.0 gal
Hydraulic System Fluid Capacity13.3 gal
Tire Size12.00x16.5
Operating Voltage12 V
Alternator Supplied Amperage65 A
Engine Oil Fluid Capacity2.8 gal
Cooling System Fluid Capacity4.4 gal
Chain Box Fluid Capacity - each side1.6 gal

Engine

Engine specifications
Engine Model4T-390
Displacement239 in³
Power Measured @2,200 rpm
Gross Power79.0 hp
Number of Cylinders4
AspirationTurbocharged

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity21.0 gal/min
Relief Valve Pressure3,000 psi
Pump Typegear pump

Dimensions

Dimensions specifications
Ground Clearance9 in
Height - Top of Cab77 in
Wheelbase44 in
Width Over Tires65 in
Reach at Max Lift and Dump21 in
Length with Bucket127 in
Clearance at Max Lift and Dump97 in
Turning Radius from Center - inc bucket77 in
Turning Radius from Center - machine rear59 in
Length w/o Bucket104 in

Loader

Loader specifications
Bucket Capacity0.60 yd³
Operating Load Rating2,000 lb
Tipping Angle4,000 °
Breakout Force4,664 psi
