Case
Caterpillar
D3K LGP
Crawler Dozer
35 specifications
1 / 5

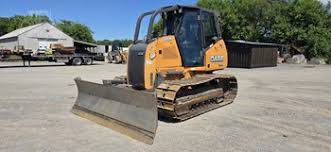

Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight | 18,478 lb |
|---|---|
| Fuel Capacity | 47.0 gal |
| Cooling System Fluid Capacity | 5.0 gal |
| Final Drives Fluid Capacity | 1.9 gal |
| Engine Oil Capacity | 2.6 gal |
| Hydraulic Fluid Capacity | 13.9 gal |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 A |
Engine
| Engine Model | 4T-390 |
|---|---|
| Displacement | 239 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 90.0 hp |
| Net Power | 81.0 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 229 lb-ft |
Hydraulic System
| Pump Flow Capacity | 23.9 gal/min |
|---|---|
| Relief Valve Pressure | 2,200 psi |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 114 in |
| Length of Track on Ground | 89 in |
| Width Over Tracks | 95 in |
| Length w/ Blade | 169 in |
Transmission
| Max Speed - Forward | 5.8 mph |
|---|---|
| Max Speed - Reverse | 6.3 mph |
| Transmission Type | Case constant-mesh modulated |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Track Gauge | 71 in |
| Number of Track Rollers per Side | 6 |
| Number of Shoes per Side | 38 |
| Number of Carrier Rollers per Side | 1 |
| Standard Shoe Size | 24 in |
| Ground Contact Area | 4,224 in³ |
| Track Pitch | 7 in |
Standard Blade
| Width | 121 in |
|---|---|
| Height | 36 in |
| Capacity | 2.50 yd³ |
| Blade Angle (both directions) | 25 ° |
