Case

75XT

Skid Steer Loader

Operating Weight
6,700 lb
Bucket Capacity
0.71 yd³
Max Speed
7.2 mph
Gross Power
69.0 hp
All skid steer loaders

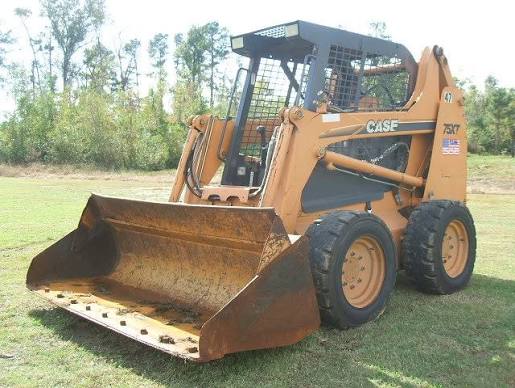

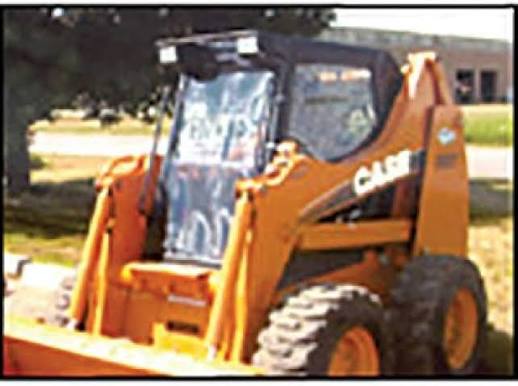

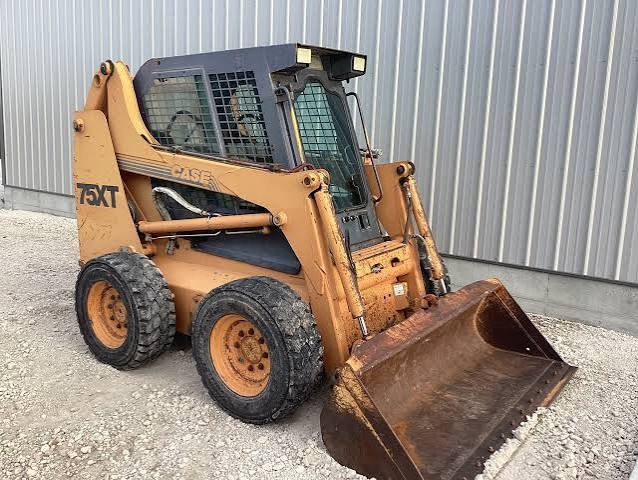

Case 75XT Skid Steer Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,700 lb
Max Speed7.2 mph
Fuel Capacity17.3 gal
Hydraulic System Fluid Capacity16.6 gal
Tire Size12.00x16.5
Operating Voltage12 V
Alternator Supplied Amperage65 A
Engine Oil Fluid Capacity2.8 gal
Cooling System Fluid Capacity4.3 gal
Chain Box Fluid Capacity - each side1.3 gal

Engine

Engine specifications
Engine Model4-390
Displacement239 in³
Power Measured @2,200 rpm
Gross Power69.0 hp
Number of Cylinders4
AspirationNatural

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity21.0 gal/min
Relief Valve Pressure3,000 psi
Pump Typegear pump

Dimensions

Dimensions specifications
Ground Clearance9 in
Height - Top of Cab80 in
Wheelbase46 in
Width Over Tires73 in
Reach at Max Lift and Dump30 in
Length with Bucket132 in
Clearance at Max Lift and Dump91 in
Turning Radius from Center - inc bucket79 in
Turning Radius from Center - machine rear61 in
Length w/o Bucket103 in

Loader

Loader specifications
Bucket Capacity0.71 yd³
Operating Load Rating2,200 lb
Tipping Angle4,400 °
Breakout Force5,173 psi
