Case
821B
- Operating Weight
- 37,040 lb
- Bucket Capacity - heaped
- 3.60 yd³
- Gross Power
- 198.5 hp
- Net Power
- 185.1 hp
1 / 5

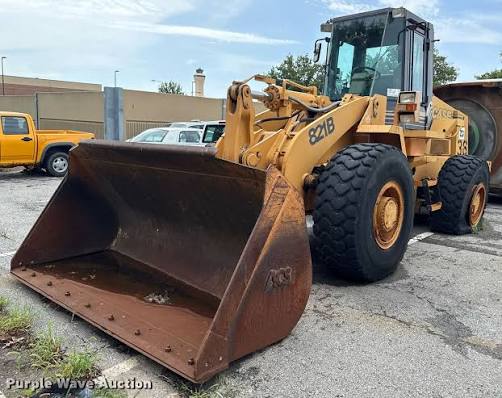

Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight | 37,040 lb |
|---|---|
| Fuel Capacity | 70.8 gal |
| Operating Voltage | 24 V |
| Engine Oil Fluid Capacity | 5.5 gal |
| Alternator Supplied Amperage | 65 A |
| Front Axle/Diff Fluid Capacity | 5.6 gal |
| Rear Axle/Diff Fluid Capacity | 4.0 gal |
| Cooling System Fluid Capacity | 8.5 gal |
| Transmission Fluid Capacity | 7.1 gal |
Engine
| Engine Model | 6T-830 |
|---|---|
| Power Measured @ | 2,000 rpm |
| Gross Power | 198.5 hp |
| Net Power | 185.1 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,400 rpm |
| Stroke | 5 in |
| Bore | 5 in |
| Engine Type | 4 stroke Direct injection |
| Max torque ISO TR14396 | 592 lb-ft |
Hydraulic System
| Pump Flow Capacity | 79.3 gal/min |
|---|---|
| Raise Time | 6.2 s |
| Lower Time | 3.8 s |
| Dump Time | 1.6 s |
| Pump Type | Hydraulic tandem pump |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 132 in |
| Wheelbase | 126 in |
| Width Over Tires | 107 in |
| Length with Bucket on Ground | 295 in |
| Hinge Pin - Max Height | 156 in |
Transmission
| Max Speed - Forward | 23.8 mph |
|---|---|
| Max Speed - Reverse | 15.5 mph |
| Transmission Type | Mechanical |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 3.60 yd³ |
|---|---|
| Bucket Capacity - struck | 3.10 yd³ |
| Breakout Force | 37,109 lb |
| Bucket Width | 109 in |
