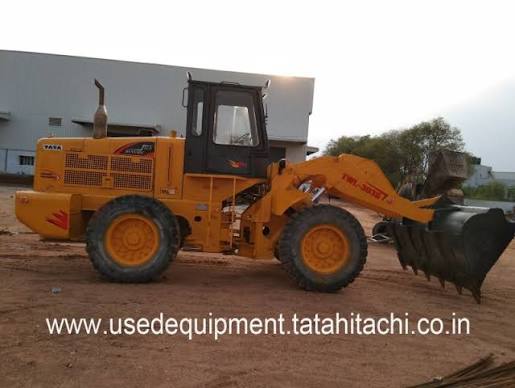

Tata Hitachi
TWL3036
- Operating Weight
- 34,734 lb
- Bucket Capacity - heaped
- 2.69 yd³
- Gross Power
- 125.0 hp
- Net Power
- 135.0 hp
1 / 5
Image 1 of 5
Specifications
41 data points
Operating Specifications
| Operating Weight | 34,734 lb |
|---|---|
| Fuel Capacity | 50.2 gal |
| Tire Size | 14x25.2 PR |
| Hydraulic System Fluid Capacity | 37.0 gal |
| Static Tipping Weight | 26,698 lb |
| Operating Voltage | 24 V |
| Turning Radius | 235 in |
| Engine Oil Fluid Capacity | 4.8 gal |
| Rear Axle Oscillation | 28 ° |
| Front Axle/Diff Fluid Capacity | 6.4 gal |
| Rear Axle/Diff Fluid Capacity | 6.4 gal |
| Cooling System Fluid Capacity | 6.1 gal |
| Transmission Fluid Capacity | 5.3 gal |
Engine
| Engine Model | TATA 697TC |
|---|---|
| Displacement | 346 in³ |
| Gross Power | 125.0 hp |
| Net Power | 135.0 hp |
| Aspiration | Turbocharged |
Hydraulic System
| Pump Flow Capacity | 50.0 gal/min |
|---|---|
| Raise Time | 6.0 s |
| Lower Time | 3.4 s |
| Dump Time | 0.9 s |
| Relief Valve Setting | 2,702 psi |
| Pump Type | Vane type transmission mounted directly driven by engine |
Dimensions
| Ground Clearance | 12 in |
|---|---|
| Height - Top of Cab | 126 in |
| Wheelbase | 113 in |
| Width Over Tires | 96 in |
| Reach at Max Lift and Dump | 55 in |
| Length with Bucket on Ground | 298 in |
| Hinge Pin - Max Height | 146 in |
Transmission
| Max Speed - Forward | 15.3 mph |
|---|---|
| Max Speed - Reverse | 11.5 mph |
| Transmission Type | ZR Ergo Power Transmission 3WG 130 |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 2.69 yd³ |
|---|---|
| Bucket Capacity - struck | 2.30 yd³ |
| Dump Clearance at Max Raise | 110 in |
| Breakout Force | 25,574 lb |
| Bucket Width | 102 in |
