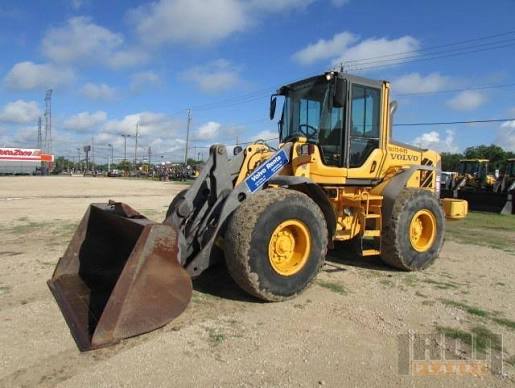

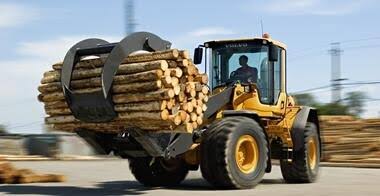

Volvo
L60F
- Operating Weight
- 26,020 lb
- Bucket Capacity - heaped
- 2.50 yd³
- Gross Power
- 154.0 hp
- Net Power
- 153.0 hp
.jpg)
1 / 5
Image 1 of 5
Specifications
46 data points
Operating Specifications
| Operating Weight | 26,020 lb |
|---|---|
| Fuel Capacity | 59.2 gal |
| Tire Size | 20.5 R25 L2 |
| Hydraulic System Fluid Capacity | 23.8 gal |
| Static Tipping Weight | 17,910 lb |
| Operating Voltage | 24 V |
| Turning Radius | 211 in |
| Engine Oil Fluid Capacity | 5.3 gal |
| Rear Axle Oscillation | 26 ° |
| Alternator Supplied Amperage | 80 A |
| Front Axle/Diff Fluid Capacity | 6.3 gal |
| Rear Axle/Diff Fluid Capacity | 6.3 gal |
| Cooling System Fluid Capacity | 7.9 gal |
| Transmission Fluid Capacity | 5.3 gal |
| Rated Bucket Capacity | 2.20 – 6.50 yd³ |
Engine
| Engine Model | D6E LCE3 |
|---|---|
| Displacement | 348 in³ |
| Power Measured @ | 1,700 rpm |
| Gross Power | 154.0 hp |
| Net Power | 153.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,600 rpm |
| Make | Volvo |
Weights
| Operating Weight | 26,110 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 38.0 gal/min |
|---|---|
| Raise Time | 4.5 s |
| Lower Time | 2.9 s |
| Dump Time | 2.9 s |
| Relief Valve Setting | 3,770 psi |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 127 in |
| Wheelbase | 119 in |
| Width Over Tires | 97 in |
| Reach at Max Lift and Dump | 42 in |
| Length with Bucket on Ground | 288 in |
| Hinge Pin - Max Height | 152 in |
Transmission
| Max Speed - Forward | 26.8 mph |
|---|---|
| Max Speed - Reverse | 26.8 mph |
| Transmission Type | Volvo HTE 110 |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 2.50 yd³ |
|---|---|
| Dump Clearance at Max Raise | 170 in |
| Breakout Force | 18,020 lb |
| Bucket Width | 100 in |
