New Holland

W110B

Wheel Loader

Operating Weight
23,069 lb
Bucket Capacity - heaped
2.11 yd³
Gross Power
118.0 hp
Net Power
106.0 hp
All wheel loaders

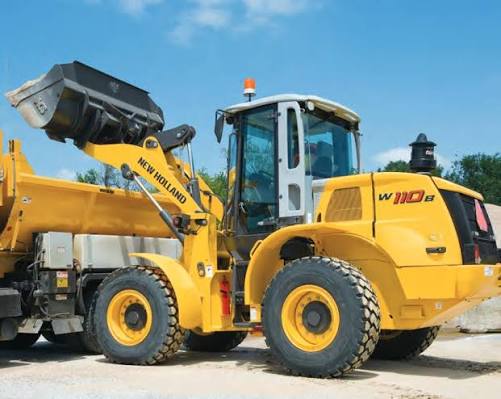

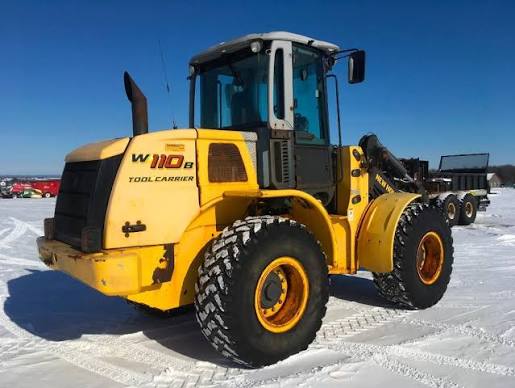

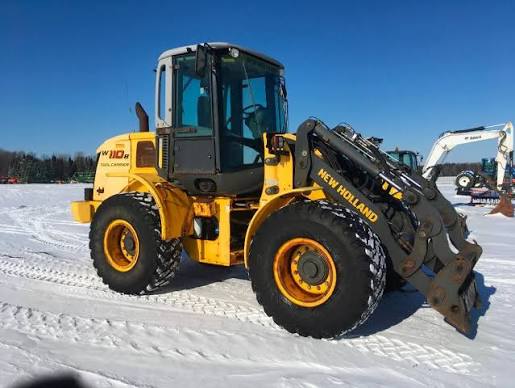

New Holland W110B Wheel Loader
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

43 data points

Operating Specifications

Operating Specifications specifications
Operating Weight23,069 lb
Fuel Capacity50.0 gal
Tire Size17.5x25 L2/L3
Hydraulic System Fluid Capacity30.1 gal
Static Tipping Weight18,620 lb
Operating Voltage24 V
Turning Radius209 in
Engine Oil Fluid Capacity3.3 gal
Alternator Supplied Amperage70 A
Front Axle/Diff Fluid Capacity5.7 gal
Rear Axle/Diff Fluid Capacity5.7 gal
Cooling System Fluid Capacity5.9 gal
Transmission Fluid Capacity5.0 gal
Rated Bucket Capacity2.11 yd³

Engine

Engine specifications
Engine ModelFPT 445TA/EGE
Displacement274 in³
Power Measured @2,000 rpm
Gross Power118.0 hp
Net Power106.0 hp
Number of Cylinders4
Torque Measured @1,300 rpm
MakeFPT

Weights

Weights specifications
Operating Weight23,069 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity35.4 gal/min
Raise Time5.6 s
Lower Time2.7 s
Dump Time1.1 s
Relief Valve Setting3,625 psi

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab130 in
Wheelbase109 in
Width Over Tires95 in
Reach at Max Lift and Dump39 in
Length with Bucket on Ground260 in
Hinge Pin - Max Height143 in

Transmission

Transmission specifications
Max Speed - Forward22.3 mph
Max Speed - Reverse14.1 mph
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped2.11 yd³
Bucket Capacity - struck1.80 yd³
Dump Clearance at Max Raise109 in
Bucket Width101 in
