JCB

436 Wastemaster

Wheel Loader

Bucket Capacity - heaped
3.20 yd³
All wheel loaders

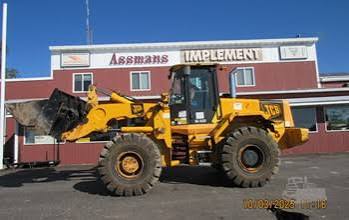

JCB 436 Wastemaster Wheel Loader
1 / 5
Image 1 of 5
Image: truck1.eu

Specifications

47 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity60.8 gal
Hydraulic System Fluid Capacity55.5 gal
Static Tipping Weight14,839 lb
Operating Voltage24 V
Turning Radius233 in
Engine Oil Fluid Capacity3.7 gal
Rear Axle Oscillation25 °
Alternator Supplied Amperage70 A
Front Axle/Diff Fluid Capacity10.4 gal
Rear Axle/Diff Fluid Capacity10.4 gal
Cooling System Fluid Capacity9.3 gal
Transmission Fluid Capacity9.0 gal
Engine Oil Capacity3.7 gal
Static Tipping Load - Bucket14,839 lb
Front Diff Fluid Capacity10.4 gal
Rear Diff Fluid Capacity10.4 gal
Static Tipping Load - Forks18,274 lb

Engine

Engine specifications
Power Measured @2,200 rpm
Number of Cylinders6
Torque Measured @1,300 rpm
Max Torque590 lb-ft

Hydraulic System

Hydraulic System specifications
Raise Time5.9 s
Lower Time3.4 s
Dump Time1.0 s
Relief Valve Setting3,625 psi
Pump TypeTwin variable displacement piston pumps

Dimensions

Dimensions specifications
Height - Top of Cab132 in
Wheelbase119 in
Width Over Tires103 in
Reach at Max Lift and Dump43 in
Length with Bucket on Ground305 in
Hinge Pin - Max Height206 in
Length w/ Bucket on Ground305 in
Dump Clearance at Max Lift167 in
Reach at Max Height and Dump50 in
Max Lift Height151 in
Fork Tine Length49 in

Transmission

Transmission specifications
Max Speed - Forward24.3 mph
Max Speed - Reverse16.5 mph
Transmission TypeSmooth shift powershift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped3.20 yd³
Bucket Capacity - struck2.69 yd³
Dump Clearance at Max Raise167 in
Breakout Force34,396 lb
Bucket Width107 in
