Hyundai
HL730TM-7A
- Operating Weight
- 10,000 lb
- Bucket Capacity - heaped
- 2.11 yd³
- Gross Power
- 125.0 hp
- Net Power
- 119.0 hp
1 / 5

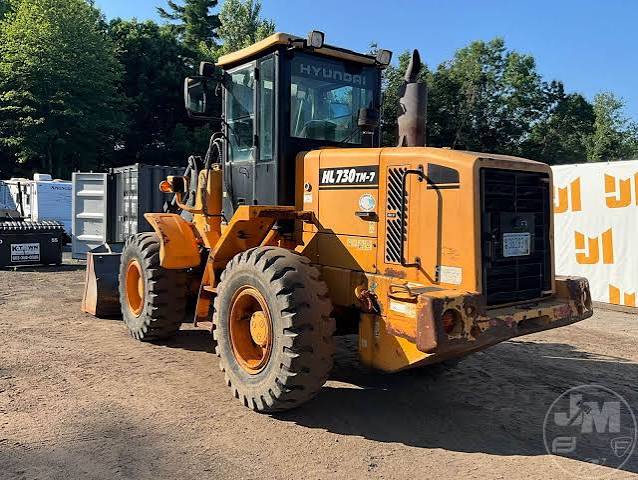

Image 1 of 5
Specifications
43 data points
Operating Specifications
| Operating Weight | 10,000 lb |
|---|---|
| Fuel Capacity | 53.4 gal |
| Tire Size | 17.5-25 12 PR L3 |
| Hydraulic System Fluid Capacity | 42.3 gal |
| Static Tipping Weight | 14,640 lb |
| Operating Voltage | 24 V |
| Engine Oil Fluid Capacity | 3.0 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 70 A |
| Front Axle/Diff Fluid Capacity | 4.9 gal |
| Rear Axle/Diff Fluid Capacity | 4.9 gal |
| Cooling System Fluid Capacity | 8.0 gal |
| Transmission Fluid Capacity | 5.3 gal |
| Rated Bucket Capacity | 2.11 yd³ |
Engine
| Engine Model | QSB4.5 |
|---|---|
| Displacement | 275 in³ |
| Gross Power | 125.0 hp |
| Net Power | 119.0 hp |
| Aspiration | turbocharged |
| Make | Cummins |
Weights
| Operating Weight | 22,050 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 37.0 gal/min |
|---|---|
| Raise Time | 5.6 s |
| Lower Time | 2.8 s |
| Dump Time | 1.4 s |
| Relief Valve Setting | 2,990 psi |
| Pump Type | helical gear type |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 126 in |
| Wheelbase | 109 in |
| Width Over Tires | 95 in |
| Reach at Max Lift and Dump | 46 in |
| Length with Bucket on Ground | 276 in |
| Hinge Pin - Max Height | 150 in |
Transmission
| Max Speed - Forward | 22.4 mph |
|---|---|
| Max Speed - Reverse | 14.4 mph |
| Transmission Type | full automatic powershift countershaft type |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 2.11 yd³ |
|---|---|
| Bucket Capacity - struck | 1.80 yd³ |
| Dump Clearance at Max Raise | 110 in |
| Breakout Force | 22,240 lb |
