Case
Massey Ferguson
50E
Wheel Loader
8 specifications
1 / 5
Image 1 of 5
Specifications
43 data points
Operating Specifications
| Operating Weight | 9,818 lb |
|---|---|
| Fuel Capacity | 26.4 gal |
| Tire Size | 335/80 R18 |
| Hydraulic System Fluid Capacity | 15.5 gal |
| Static Tipping Weight | 6,852 lb |
| Operating Voltage | 12 V |
| Turning Radius | 148 in |
| Engine Oil Fluid Capacity | 2.3 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 55 A |
| Front Axle/Diff Fluid Capacity | 1.0 gal |
| Rear Axle/Diff Fluid Capacity | 1.0 gal |
| Cooling System Fluid Capacity | 3.2 gal |
Engine
| Engine Model | F4M2011 |
|---|---|
| Displacement | 190 in³ |
| Power Measured @ | 2,300 rpm |
| Gross Power | 55.0 hp |
| Net Power | 51.0 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,700 rpm |
Hydraulic System
| Pump Flow Capacity | 13.5 gal/min |
|---|---|
| Raise Time | 6.0 s |
| Lower Time | 3.0 s |
| Dump Time | 1.0 s |
| Relief Valve Setting | 3,335 psi |
| Pump Type | open-centered pressure/flow compensated |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 106 in |
| Wheelbase | 84 in |
| Width Over Tires | 71 in |
| Reach at Max Lift and Dump | 33 in |
| Length with Bucket on Ground | 204 in |
| Hinge Pin - Max Height | 121 in |
Transmission
| Max Speed - Forward | 11.6 mph |
|---|---|
| Max Speed - Reverse | 11.6 mph |
| Transmission Type | hydrostatic |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 1.10 yd³ |
|---|---|
| Bucket Capacity - struck | 0.90 yd³ |
| Dump Clearance at Max Raise | 93 in |
| Breakout Force | 8,968 lb |
| Bucket Width | 76 in |

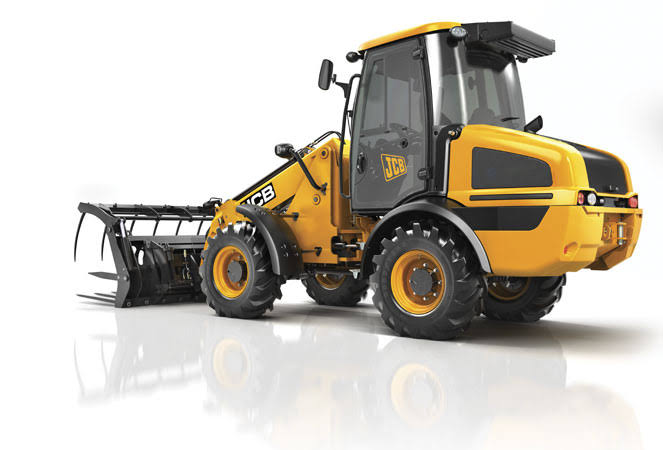

Comparable machines
