Wacker Neuson

WL60T

Wheel Loader

Operating Weight
13,448 lb
Bucket Capacity - heaped
1.50 yd³
Net Power
102.0 hp
All wheel loaders

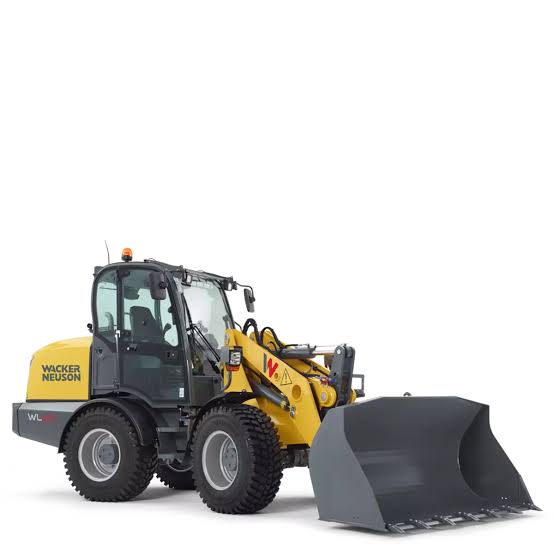

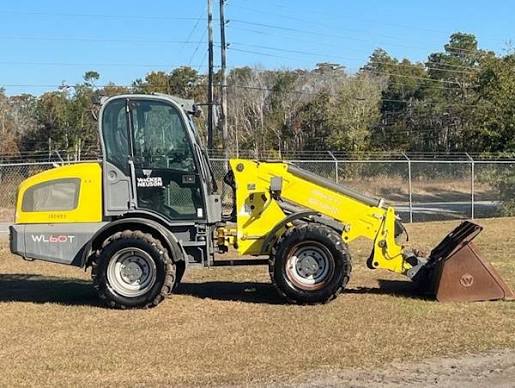

Wacker Neuson WL60T Wheel Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Weight13,448 lb
Fuel Capacity27.3 gal
Tire Size600/40-22.5 AS ET-50
Hydraulic System Fluid Capacity100.3 gal
Operating Voltage12 V
Alternator Supplied Amperage120 A
Payload7,434 lb

Engine

Engine specifications
Engine Model854F-E34TA
Displacement207 in³
Power Measured @2,500 rpm
Net Power102.0 hp
Number of Cylinders4
Engine MakePerkins

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity26.0 gal/min
Relief Valve Pressure3,408 psi

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab106 in
Wheelbase86 in
Overall Length252 in
Width Over Tires83 in
Reach at Max Lift and Dump37 in
Length with Bucket on Ground205 in
Hinge Pin - Max Height64 in
Turning Radius - Inside78 in
Track Width56 in
Articulation Angle42 °

Transmission

Transmission specifications
Travel Speed12.4 mph

Bucket

Bucket specifications
Bucket Capacity - heaped1.50 yd³
Tipping load Standard bucket7,434 lb

General Specifications

General Specifications specifications
Operating Weight13,448 (6,100) — Starting 2019 Model Year
Bucket Capacity1.30 (1.15) — Starting 2021 Model Year
Engine typePerkins 854E-E34TAWF Tier 4 Final — Starting 2021 Model Year
Engine Power102 (75) — Starting 2021 Model Year
Max Dump Height13.4 (4.1) — Starting 2019 Model Year
