Case

821E

Wheel Loader

Operating Weight
37,844 lb
Bucket Capacity - heaped
4.50 yd³
Gross Power
210.0 hp
Net Power
198.0 hp
All wheel loaders

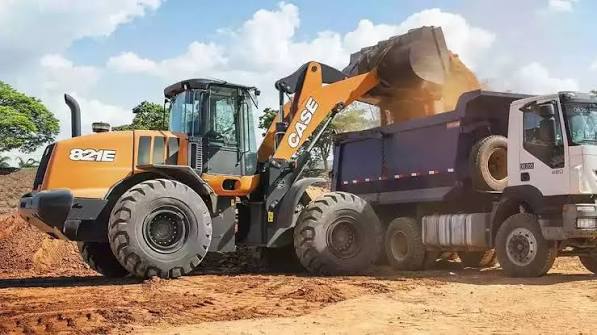

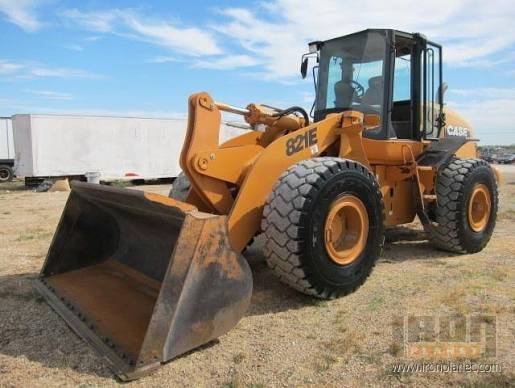

Case 821E Wheel Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

48 data points

Operating Specifications

Operating Specifications specifications
Operating Weight37,844 lb
Fuel Capacity76.0 gal
Tire Size23.5 x 25 l2 bias
Hydraulic System Fluid Capacity46.0 gal
Static Tipping Weight31,376 lb
Operating Voltage24 V
Turning Radius238 in
Engine Oil Fluid Capacity5.6 gal
Rear Axle Oscillation24 °
Alternator Supplied Amperage70 A
Front Axle/Diff Fluid Capacity9.9 gal
Rear Axle/Diff Fluid Capacity6.3 gal
Cooling System Fluid Capacity110.8 gal
Transmission Fluid Capacity10.5 gal
Rated Bucket Capacity4.43 yd³

Engine

Engine specifications
Engine ModelFamily IV 667TA/EBD Tier III Certified
Displacement411 in³
Power Measured @1,800 rpm
Gross Power210.0 hp
Net Power198.0 hp
Number of Cylinders6
AspirationTurbocharged and Aftercooled
Torque Measured @1,400 rpm
MakeCase

Weights

Weights specifications
Operating Weight37,844 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity31.6 gal/min
Raise Time5.6 s
Lower Time2.8 s
Dump Time1.2 s
Relief Valve Setting3,600 psi
Pump Typeclosed centered pressure/flow compensated

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab137 in
Wheelbase132 in
Width Over Tires114 in
Reach at Max Lift and Dump46 in
Length with Bucket on Ground311 in
Hinge Pin - Max Height163 in

Transmission

Transmission specifications
Max Speed - Forward23.0 mph
Max Speed - Reverse15.7 mph
Transmission Type4F/3R Proportional w/Electronic Control Module
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped4.50 yd³
Bucket Capacity - struck3.81 yd³
Dump Clearance at Max Raise118 in
Breakout Force34,416 lb
Bucket Width115 in
