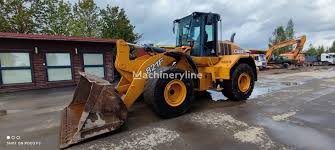

Case
821F XR
- Operating Weight
- 39,716 lb
- Bucket Capacity - heaped
- 4.20 yd³
- Gross Power
- 230.0 hp
- Net Power
- 211.0 hp
1 / 5
Image 1 of 5
Specifications
50 data points
Operating Specifications
| Operating Weight | 39,716 lb |
|---|---|
| Fuel Capacity | 76.0 gal |
| Tire Size | 23.5 x 25 L3 |
| Hydraulic System Fluid Capacity | 47.0 gal |
| Static Tipping Weight | 24,991 lb |
| Operating Voltage | 24 V |
| Engine Oil Fluid Capacity | 4.0 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 65 A |
| Front Axle/Diff Fluid Capacity | 10.6 gal |
| Rear Axle/Diff Fluid Capacity | 10.6 gal |
| Cooling System Fluid Capacity | 8.0 gal |
| Transmission Fluid Capacity | 9.1 gal |
| Rated Bucket Capacity | 4.50 yd³ |
Engine
| Engine Model | F4HFE613X |
|---|---|
| Displacement | 411 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 230.0 hp |
| Net Power | 211.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,300 rpm |
| Make | Case |
| Torque Rise | 47.0 % |
Weights
| Operating Weight | 39,716 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 63.5 gal/min |
|---|---|
| Raise Time | 6.2 s |
| Lower Time | 2.5 s |
| Dump Time | 1.2 s |
| Relief Valve Setting | 3,625 psi |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 137 in |
| Wheelbase | 132 in |
| Width Over Tires | 114 in |
| Reach at Max Lift and Dump | 48 in |
| Length with Bucket on Ground | 329 in |
| Hinge Pin - Max Height | 180 in |
Transmission
| Max Speed - Forward | 22.8 mph |
|---|---|
| Max Speed - Reverse | 15.2 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 4.20 yd³ |
|---|---|
| Bucket Capacity - struck | 3.60 yd³ |
| Dump Clearance at Max Raise | 135 in |
| Bucket Width | 120 in |
General Specifications
| Operating Weight | 39,716 (18,014) — Starting 2016 Model Year |
|---|---|
| Bucket Capacity | 4.5 (3.44) — Starting 2016 Model Year |
| Engine type | Case/FPT — Starting 2016 Model Year |
| Engine Power | 212 (158) — Starting 2016 Model Year |
| Max Dump Height | 11.2 (3.4) — Starting 2016 Model Year |
