Case

821G

Wheel Loader

Operating Weight
40,058 lb
Bucket Capacity - heaped
4.20 yd³
Gross Power
230.0 hp
Net Power
206.0 hp
All wheel loaders

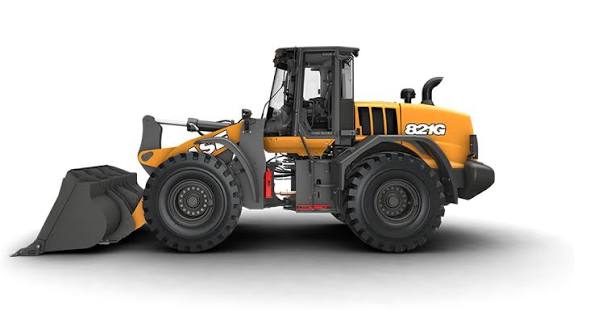

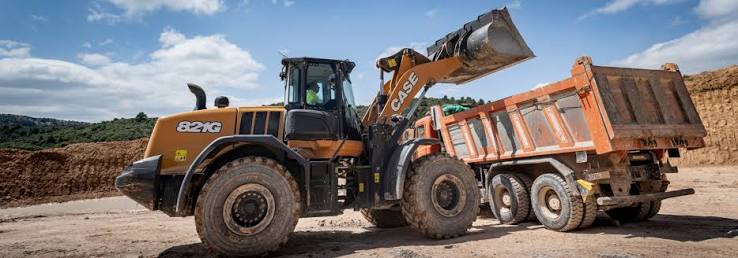

Case 821G Wheel Loader
1 / 5
Image 1 of 5
Image: casece.com

Specifications

56 data points

Operating Specifications

Operating Specifications specifications
Operating Weight40,058 lb
Fuel Capacity76.1 gal
Operating Voltage24 V
Rear Axle Oscillation24 °
Front Axle/Diff Fluid Capacity10.6 gal
Rear Axle/Diff Fluid Capacity10.6 gal
Cooling System Fluid Capacity8.0 gal
Transmission Fluid Capacity9.1 gal
Rated Bucket Capacity4.30 yd³
DEF tank capacity15.6 gal

Engine

Engine specifications
Engine ModelFPT F4HFE613S
Displacement411 in³
Gross Power230.0 hp
Net Power206.0 hp
Number of Cylinders6
Max Torque873 lb-ft
MakeCase
Torque Rise47.0 %
Alternator120 A
Rated Engine Speed2,000 rpm
EmissionsTier 4

Weights

Weights specifications
Operating Weight40,057 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity31.8 gal/min
Pump TypePiston
Steering pump typeArticulation
Maximum system pressure3,625 psi

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab135 in
Wheelbase132 in
Width Over Tires111 in
Reach at Max Lift and Dump67 in
Hinge Pin - Max Height163 in
Overall length (L/bucket)316 in
Turning Radius Outside Tires236 in
Dump height - fully raised, 45 degrees dump117 in
Dump reach @ full height, 45 degrees dump44 in
Overall width without bucket111 in
Bucket reach - fully raised, 45à ° dump43 in
Operating height - fully raised with spillgaurd215 in

Transmission

Transmission specifications
Max Speed - Forward22.8 mph
Transmission TypePowershift
Number of Forward Gears4
Number of Reverse Gears3
Differential lockF: LSD / R: LSD

Brakes & Steering

Brakes & Steering specifications
Service brakeWet Multi Disc

Bucket

Bucket specifications
Bucket Capacity - heaped4.20 yd³
Dump Clearance at Max Raise113 in
Breakout Force35,273 lb

General Specifications

General Specifications specifications
Operating Weight42,414 (19,239) Starting 2024 Model Year
Bucket Capacity4 (3.1) Starting 2024 Model Year
Engine typeCase/FPT Starting 2019 Model Year
Engine Power213 (159) Starting 2024 Model Year
Max Dump Height9.8 (3) Starting 2024 Model Year

Hydraulic cycle times (unloaded)

Hydraulic cycle times (unloaded) specifications
Total cycle time9.9 s

Performance

Performance specifications
Tipping Load28,504 lb
Bucket breakout force, SAE35,273 lb
