Case

85XT

Skid Steer Loader

Operating Weight
8,057 lb
Bucket Capacity
0.71 yd³
Max Speed
7.6 mph
Gross Power
69.0 hp
All skid steer loaders

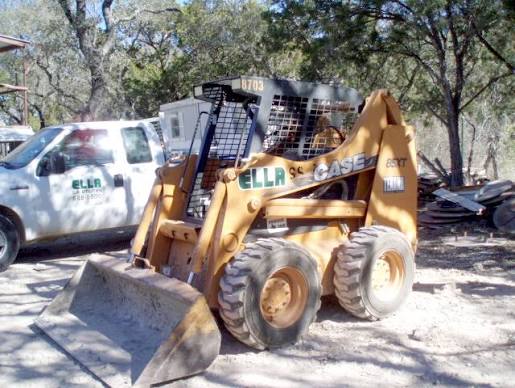

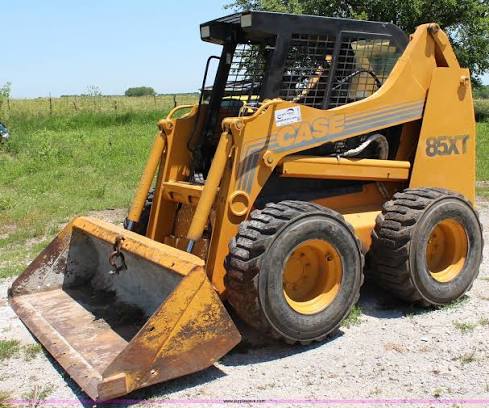

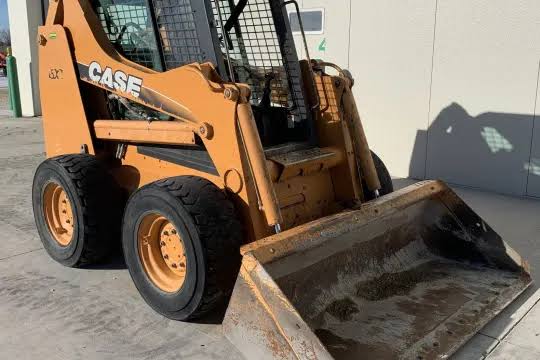

Case 85XT Skid Steer Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,057 lb
Max Speed7.6 mph
Fuel Capacity17.3 gal
Hydraulic System Fluid Capacity16.6 gal
Tire Size12.00x16.5
Operating Voltage12 V
Alternator Supplied Amperage65 A
Engine Oil Fluid Capacity2.8 gal
Cooling System Fluid Capacity4.4 gal
Chain Box Fluid Capacity - each side2.1 gal

Engine

Engine specifications
Engine Model4-390
Displacement239 in³
Power Measured @2,500 rpm
Gross Power69.0 hp
Number of Cylinders4
AspirationNatural

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity25.1 gal/min
Relief Valve Pressure3,002 psi
Pump Typegear pump with integrated constant pressure valve

Dimensions

Dimensions specifications
Ground Clearance9 in
Height - Top of Cab80 in
Wheelbase46 in
Width Over Tires73 in
Reach at Max Lift and Dump39 in
Length with Bucket135 in
Clearance at Max Lift and Dump93 in
Turning Radius from Center - inc bucket84 in
Turning Radius from Center - machine rear61 in
Length w/o Bucket103 in

Loader

Loader specifications
Bucket Capacity0.71 yd³
Operating Load Rating2,400 lb
Tipping Angle4,800 °
Breakout Force4,936 psi
