Case

90XT

Skid Steer Loader

Operating Weight
8,950 lb
Bucket Capacity
0.80 yd³
Max Speed
11.1 mph
Gross Power
74.0 hp
All skid steer loaders

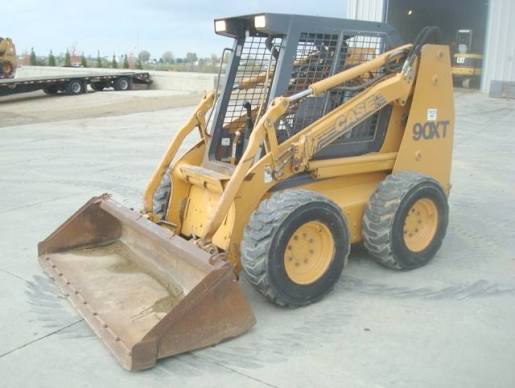

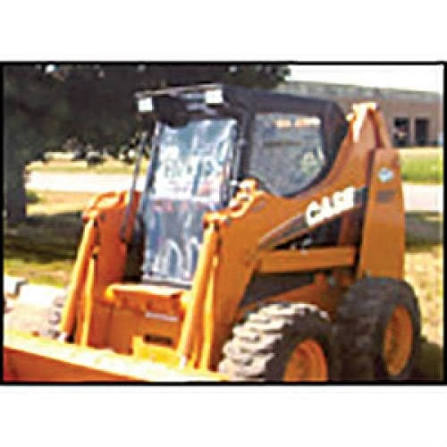

Case 90XT Skid Steer Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,950 lb
Max Speed11.1 mph
Fuel Capacity20.7 gal
Hydraulic System Fluid Capacity17.0 gal
Tire Size15.5x16.5
Operating Voltage12 V
Alternator Supplied Amperage65 A
Engine Oil Fluid Capacity2.8 gal
Cooling System Fluid Capacity4.4 gal
Chain Box Fluid Capacity - each side2.1 gal

Engine

Engine specifications
Engine Model4T-390
Displacement239 in³
Power Measured @2,500 rpm
Gross Power74.0 hp
Number of Cylinders4
AspirationTurbocharged

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity25.1 gal/min
Relief Valve Pressure3,002 psi
Pump Typegear pump with integrated constant pressure valve

Dimensions

Dimensions specifications
Ground Clearance9 in
Height - Top of Cab80 in
Wheelbase47 in
Width Over Tires73 in
Reach at Max Lift and Dump27 in
Length with Bucket138 in
Clearance at Max Lift and Dump95 in
Turning Radius from Center - inc bucket84 in
Turning Radius from Center - machine rear62 in
Length w/o Bucket106 in

Loader

Loader specifications
Bucket Capacity0.80 yd³
Operating Load Rating2,450 lb
Tipping Angle4,900 °
Breakout Force5,290 psi
