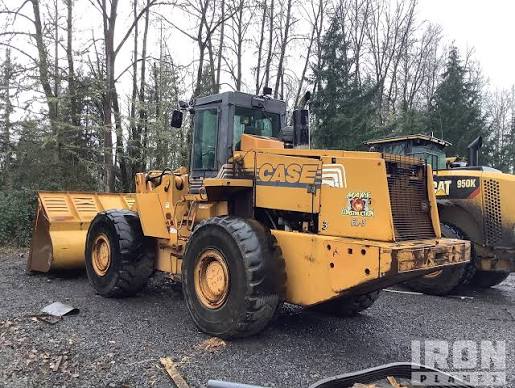

Case
Tata Hitachi
TWL3036
Wheel Loader
41 specifications
1 / 5
Image 1 of 5
Specifications
35 data points
Operating Specifications
| Fuel Capacity | 104.0 gal |
|---|---|
| Tire Size | 26.5 x 25 L3 20PR |
| Hydraulic System Fluid Capacity | 60.3 gal |
| Operating Voltage | 24 V |
| Engine Oil Fluid Capacity | 9.0 gal |
| Alternator Supplied Amperage | 70 A |
| Cooling System Fluid Capacity | 10.5 gal |
| Transmission Fluid Capacity | 11.5 gal |
Engine
| Engine Model | M11 |
|---|---|
| Displacement | 661 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 270.0 hp |
| Net Power | 248.0 hp |
| Number of Cylinders | 6 |
| Torque Measured @ | 1,300 rpm |
| Engine Make | Cummins |
| Stroke | 6 in |
| Bore | 5 in |
Hydraulic System
| Raise Time | 6.2 s |
|---|---|
| Lower Time | 4.9 s |
| Dump Time | 1.5 s |
Dimensions
| Ground Clearance | 210 in |
|---|---|
| Height - Top of Cab | 143 in |
| Wheelbase | 134 in |
| Width Over Tires | 117 in |
Transmission
| Max Speed - Forward | 25.2 mph |
|---|---|
| Max Speed - Reverse | 18.0 mph |
| Transmission Type | Power shift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 4.80 yd³ |
|---|---|
| Bucket Capacity - struck | 3.90 yd³ |
| Dump Clearance at Max Raise | 125 in |
| Breakout Force | 50,275 lb |
| Bucket Width | 120 in |
