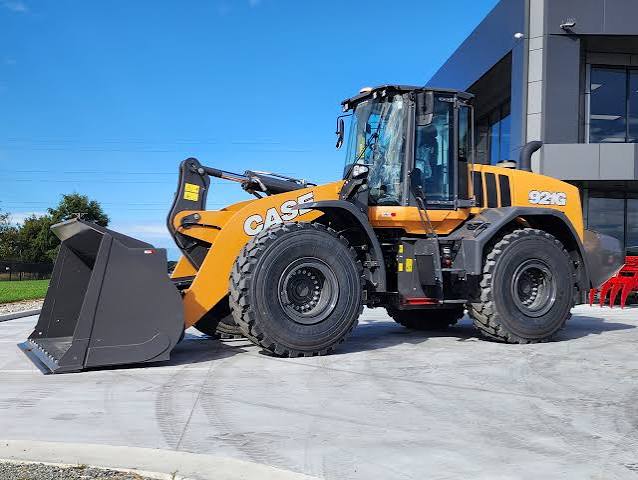

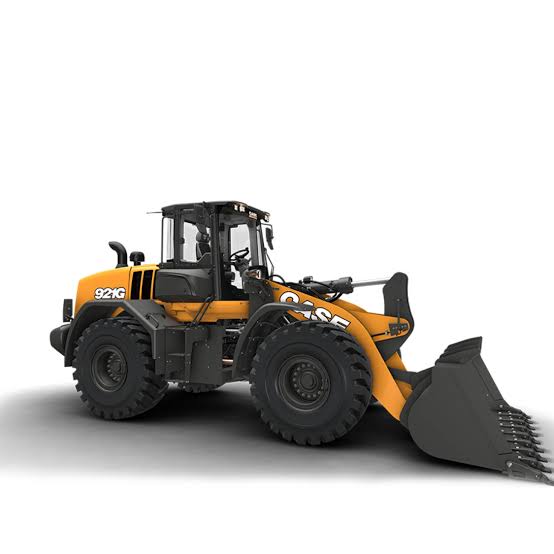

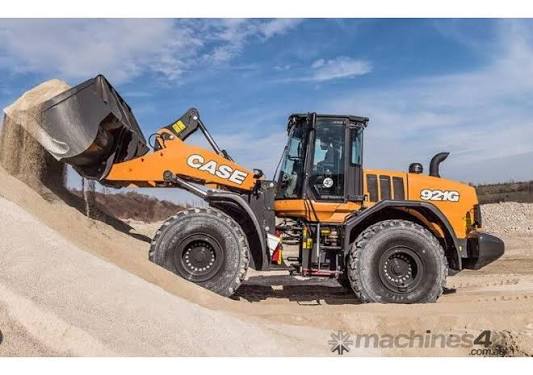

Case
921G
- Operating Weight
- 45,069 lb
- Bucket Capacity - heaped
- 4.80 yd³
- Gross Power
- 255.0 hp
- Net Power
- 225.0 hp
1 / 5
Image 1 of 5
Specifications
56 data points
Operating Specifications
| Operating Weight | 45,069 lb |
|---|---|
| Fuel Capacity | 76.1 gal |
| Operating Voltage | 24 V |
| Rear Axle Oscillation | 24 ° |
| Front Axle/Diff Fluid Capacity | 11.1 gal |
| Rear Axle/Diff Fluid Capacity | 10.6 gal |
| Cooling System Fluid Capacity | 8.0 gal |
| Transmission Fluid Capacity | 9.1 gal |
| Rated Bucket Capacity | 4.80 yd³ |
| DEF tank capacity | 15.6 gal |
Engine
| Engine Model | FPT F4HFE613R |
|---|---|
| Displacement | 411 in³ |
| Gross Power | 255.0 hp |
| Net Power | 225.0 hp |
| Number of Cylinders | 6 |
| Max Torque | 959 lb-ft |
| Make | Case |
| Torque Rise | 49.0 % |
| Alternator | 120 A |
| Rated Engine Speed | 2,000 rpm |
| Emissions | Tier 4 |
Weights
| Operating Weight | 45,070 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 42.8 gal/min |
|---|---|
| Pump Type | Piston |
| Steering pump type | Articulation |
| Maximum system pressure | 3,625 psi |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 137 in |
| Wheelbase | 132 in |
| Width Over Tires | 111 in |
| Reach at Max Lift and Dump | 70 in |
| Hinge Pin - Max Height | 163 in |
| Overall length (L/bucket) | 323 in |
| Turning Radius Outside Tires | 236 in |
| Dump height - fully raised, 45 degrees dump | 115 in |
| Dump reach @ full height, 45 degrees dump | 48 in |
| Overall width without bucket | 111 in |
| Bucket reach - fully raised, 45à ° dump | 47 in |
| Operating height - fully raised with spillgaurd | 220 in |
Transmission
| Max Speed - Forward | 22.8 mph |
|---|---|
| Transmission Type | Powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
| Differential lock | F: Open / R: Open |
Brakes & Steering
| Service brake | Wet Multi Disc |
|---|
Bucket
| Bucket Capacity - heaped | 4.80 yd³ |
|---|---|
| Dump Clearance at Max Raise | 110 in |
| Breakout Force | 37,678 lb |
General Specifications
| Operating Weight | 45,070 (20,443) — Starting 2019 Model Year |
|---|---|
| Bucket Capacity | 4.75 (3.6) — Starting 2024 Model Year |
| Engine type | Case/FPT — Starting 2019 Model Year |
| Engine Power | 242 (180) — Starting 2019 Model Year |
| Max Dump Height | 9.8 (3) — Starting 2024 Model Year |
Hydraulic cycle times (unloaded)
| Total cycle time | 11.4 s |
|---|
Performance
| Tipping Load | 33,030 lb |
|---|---|
| Bucket breakout force, SAE | 35,273 lb |
