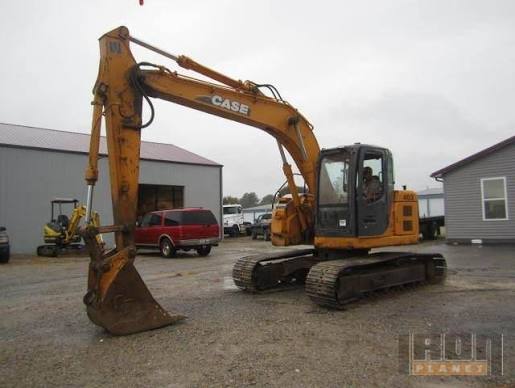

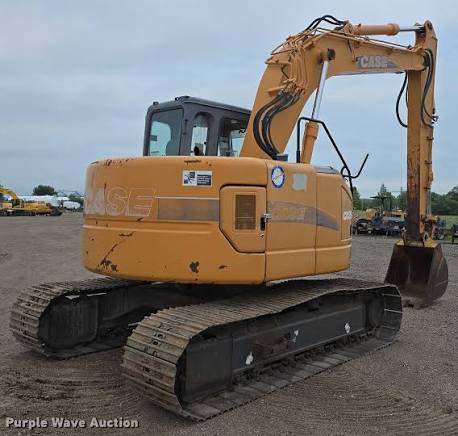

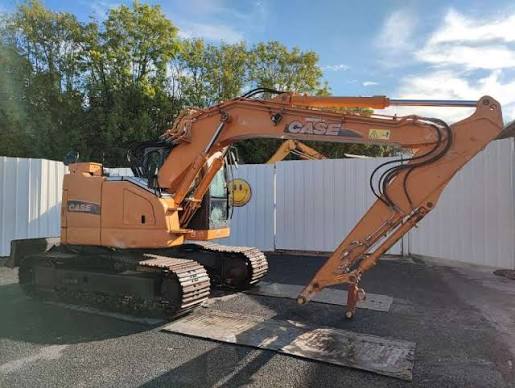

Case CX135SR Excavator
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

41 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity43.6 gal
Hydraulic System Fluid Capacity33.1 gal
Hydraulic System Relief Valve Pressure4,975 psi
Engine Oil Capacity4.0 gal
Cooling System Fluid Capacity4.7 gal
Operating Voltage24 V
Swing Drive Fluid Capacity0.8 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelBB-4BG1T
Power Measured @2,100 rpm
Gross Power88.0 hp
Net Power88.0 hp
Number of Cylinders4
AspirationTurbo

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab109 in
Length of Track on Ground110 in
Tail Swing Radius59 in
Removal Counterweight Clearance35 in
Digging Depth204 in
Digging Reach204 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side6
Max Travel Speed3.2 mph
Shoe Size20 in
Number of Shoes per Side43
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Cutting Height324 in
Shipping Length of Unit285 in
Shipping Height of Unit109 in

Bucket

Bucket specifications
Reference Bucket Capacity0.71 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth196 in
Max Vertical Wall Digging Depth144 in
Max Cutting Height340 in
Max Loading Height245 in
Max Reach Along Ground291 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth215 in
Max Cutting Height367 in
Max Loading Height272 in
Max Vertical Wall Digging Depth192 in
Max Reach Along Ground318 in
