Tata Hitachi

EX70

Excavator

Operating Weight
15,917 lb
Max Digging Depth
165 in
Max Digging Depth
183 in
Net Power
58.0 hp
All excavators

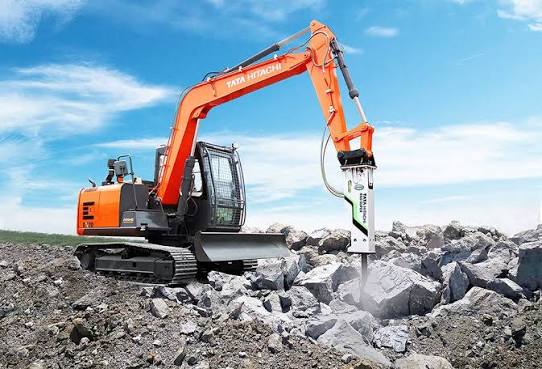

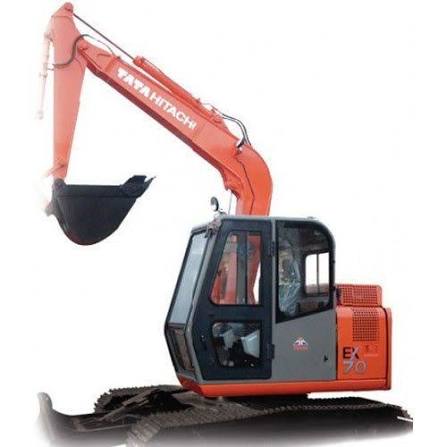

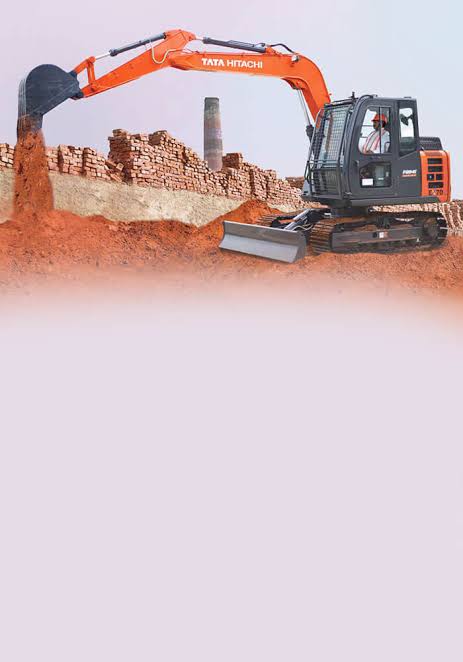

Tata Hitachi EX70 Excavator
1 / 5
Image 1 of 5
Image: psnce.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,917 lb
Fuel Capacity35.7 gal
Hydraulic Pump Flow Capacity34.4 gal/min
Hydraulic System Fluid Capacity23.8 gal
Hydraulic System Relief Valve Pressure3,983 psi
Engine Oil Capacity2.7 gal
Cooling System Fluid Capacity4.1 gal
Swing Drive Fluid Capacity0.5 gal

Engine

Engine specifications
Engine ModelTATA-497 NA
Power Measured @2,100 rpm
Net Power58.0 hp
Torque Measured @1,400 rpm
Max Torque137 lb-ft

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab106 in
Tail Swing Radius70 in
Width to Outside of Tracks91 in
Removal Counterweight Clearance30 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge73 in
Number of Track Rollers per Side5
Max Travel Speed2.9 mph
Shoe Size18 in
Number of Shoes per Side37
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth165 in
Max Reach Along Ground244 in
Max Loading Height200 in
Max Vertical Wall Digging Depth138 in
Max Cutting Height282 in

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³
Maximum Bucket Capacity0.50 yd³
Minimum Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed14 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth183 in
Max Vertical Wall Digging Depth161 in
Max Cutting Height298 in
Max Loading Height216 in
Max Reach Along Ground263 in
