Case
Tata Hitachi
EX70
Excavator
39 specifications
1 / 5
Image 1 of 5
Specifications
46 data points
Operating Specifications
| Operating Weight | 15,212 lb |
|---|---|
| Fuel Capacity | 37.0 gal |
| Hydraulic Pump Flow Capacity | 40.0 gal/min |
| Hydraulic System Fluid Capacity | 25.1 gal |
| Hydraulic System Relief Valve Pressure | 4,400 psi |
| Engine Oil Capacity | 2.7 gal |
| Cooling System Fluid Capacity | 2.7 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 40 A |
Engine
| Engine Model | 4JB1 |
|---|---|
| Displacement | 169 in³ |
| Power Measured @ | 2,100 rpm |
| Net Power | 54.0 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 139 lb-ft |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 104 in |
| Tail Swing Radius | 70 in |
| Width to Outside of Tracks | 85 in |
| Removal Counterweight Clearance | 30 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Number of Track Rollers per Side | 5 |
| Max Travel Speed | 3.1 mph |
| Shoe Size | 18 in |
| Number of Shoes per Side | 42 |
| Number of Carrier Rollers per Side | 1 |
| Drawbar Pull | 11,023 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 165 in |
|---|---|
| Max Reach Along Ground | 246 in |
| Max Loading Height | 203 in |
| Max Vertical Wall Digging Depth | 138 in |
| Max Cutting Height | 285 in |
| Shipping Length of Unit | 238 in |
| Shipping Height of Unit | 104 in |
Bucket
| Reference Bucket Capacity | 0.50 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.71 yd³ |
| Minimum Bucket Capacity | 0.30 yd³ |
Swing Mechanism
| Swing Speed | 14 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 181 in |
|---|---|
| Max Vertical Wall Digging Depth | 161 in |
| Max Cutting Height | 302 in |
| Max Loading Height | 220 in |
| Max Reach Along Ground | 264 in |
| Shipping Length of Unit | 244 in |
| Shipping Height of Unit | 117 in |

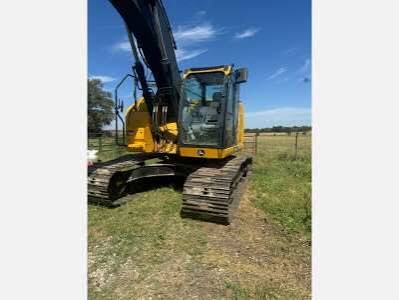

Comparable machines
