Case
Liugong
936E
Excavator
Specifications pending
1 / 5

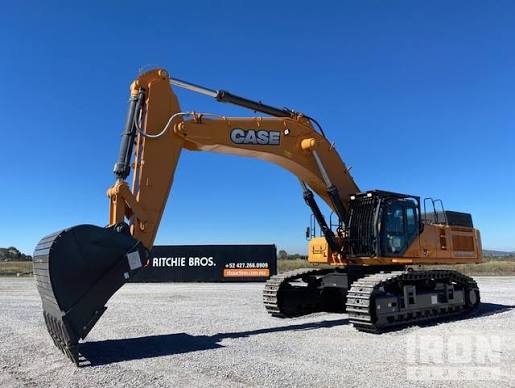

Image 1 of 5
Specifications
61 data points
Operating Specifications
| Fuel Capacity | 238.0 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 264.2 gal/min |
| Hydraulic System Fluid Capacity | 190.0 gal |
| Hydraulic System Relief Valve Pressure | 4,554 psi |
| Engine Oil Capacity | 12.5 gal |
| Cooling System Fluid Capacity | 26.5 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 3.6 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | 6WG1X |
|---|---|
| Displacement | 958 in³ |
| Power Measured @ | 1,800 rpm |
| Aspiration | turbocharged |
| Torque Measured @ | 1,500 rpm |
| Max Torque | 1,659 lb-ft |
Dimensions
| Ground Clearance | 420 in |
|---|---|
| Height - Top of Cab | 150 in |
| Length of Track on Ground | 200 in |
| Tail Swing Radius | 169 in |
| Width to Outside of Tracks | 148 in |
| Removal Counterweight Clearance | 756 in |
| Digging Depth | 420 in |
| Digging Reach | 420 in |
Undercarriage
| Ground Pressure | 14 psi |
|---|---|
| Track Gauge | 144 in |
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 2.7 mph |
| Shoe Size | 30 in |
| Number of Shoes per Side | 51 |
| Number of Carrier Rollers per Side | 3 |
| Drawbar Pull | 12,229 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 420 in |
|---|---|
| Max Reach Along Ground | 613 in |
| Max Loading Height | 401 in |
| Max Vertical Wall Digging Depth | 360 in |
| Max Cutting Height | 564 in |
| Shipping Length of Unit | 548 in |
| Shipping Height of Unit | 245 in |
Bucket
| Reference Bucket Capacity | 4.90 yd³ |
|---|---|
| Maximum Bucket Capacity | 6.00 yd³ |
| Minimum Bucket Capacity | 2.60 yd³ |
Swing Mechanism
| Swing Speed | 8 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 373 in |
|---|---|
| Max Vertical Wall Digging Depth | 306 in |
| Max Cutting Height | 535 in |
| Max Loading Height | 374 in |
| Max Reach Along Ground | 578 in |
| Shipping Length of Unit | 564 in |
| Shipping Height of Unit | 198 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 342 in |
|---|---|
| Max Cutting Height | 509 in |
| Max Loading Height | 352 in |
| Max Vertical Wall Digging Depth | 256 in |
| Max Reach Along Ground | 546 in |
| Shipping Length of Unit | 565 in |
Boom/Stick Excavator Option 4
| Max Digging Depth | 277 in |
|---|---|
| Max Cutting Height | 463 in |
| Max Reach Along Ground | 473 in |
| Max Loading Height | 312 in |
| Max Vertical Wall Dig Depth | 168 in |
| Shipping Length of Unit | 521 in |
