Case

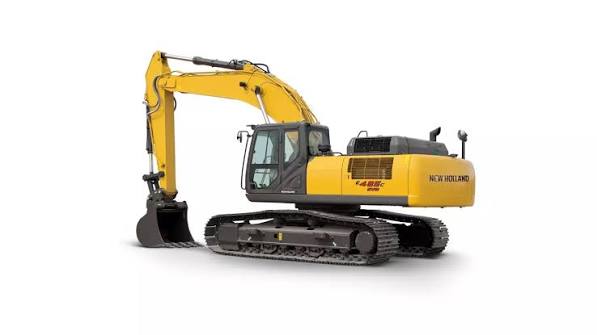

New Holland
E485
Excavator
51 specifications
1 / 5
Image 1 of 5
Specifications
72 data points
Operating Specifications
| Operating Weight | 178,575 lb |
|---|---|
| Arm Breakout Force | 67,443 lb |
| Arm size | 144,095 in |
Engine
| Engine Model | Isuzu 6 WG1T |
|---|---|
| Displacement | 958 in³ |
| Power Measured @ | 1,800 rpm |
| Net Power | 532.0 hp |
| Max Torque | 1,660 lb-ft |
| Engine Make | Isuzu |
| Stroke | 6 in |
| Bore | 6 in |
| Fuel Type | Diesel |
| Emission Tier Level | Tier 3 |
| Fuel injection | Direct |
| Air filter type | Dry type element with warning restriction indicator |
| Fuel Filter | In-line strainer |
| Oil Filter | Replaceable full flow spin-on cartridge |
Weights
| Counterweight | 8,157 lb |
|---|
Hydraulic System
| Main pump - Maximum flow | 264.2 gal |
|---|---|
| System relief pressure | 4,554 psi |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Tail Swing Radius | 169 in |
| Overall Height | 245 in |
| Track Gauge | 137 in |
| Cab height | 11 in |
| Center to center - idler to sprocket | 202 in |
| Ground pressure | 14 psi |
| Boom length | 332 in |
| Minimum ground clearance | 4 in |
Transmission
| Max Speed | 3.5 mph |
|---|
Undercarriage
| Track Shoe Width | 30 in |
|---|
Brakes & Steering
| Service brake | SAHR disc - each motor |
|---|---|
| Brakes Type | Mechanical disc |
| Travel control | Dual stage relief or counter balance design |
Fluid Capacities
| Fuel Tank | 237.8 gal |
|---|---|
| Hydraulic system | 190.3 gal |
| Hydraulic Tank | 81.9 gal |
| Engine oil w/ filter change | 13.8 gal |
| Swing drive | 3.6 gal |
| Final Drive | 3.7 gal |
Boom/Stick Excavator Option 1
| Max Digging Depth | 420 in |
|---|---|
| Max Reach Along Ground | 563 in |
| Max Vertical Wall Digging Depth | 36 in |
| Minimum swing radius | 25 in |
| Bucket rotation | 167 ° |
| Mximum dig radius | 64 in |
| Dig radius at ground line | 63 in |
| Dump height | 40 in |
Swing Mechanism
| Swing Speed | 6 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Vertical Wall Digging Depth | 31 in |
|---|---|
| Minimum swing radius | 24 in |
| Bucket rotation | 167 ° |
| Dig radius at ground line | 58 in |
| Dump height | 38 in |
| Maximum dig radius | 59 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 26 in |
|---|---|
| Minimum swing radius | 25 in |
| Overall height | 245 in |
| Bucket rotation | 167 ° |
| Maximum dig radius | 56 in |
| Dig radius at ground line | 55 in |
| Dump height | 35 in |
Boom/Stick Excavator Option 4
| Max Digging Depth | 28 in |
|---|---|
| Max Vertical Wall Dig Depth | 17 in |
| Minimum swing radius | 0 in |
| Bucket rotation | 162 |
| Dig radius at ground line | 47 in |
| Dump height | 0 in |
| Maximum dig radius | 48,466 in |
| Maximum reach height | 46 in |
Performance
| Lift over end Max. reach | 16,087 lb |
|---|---|
| Lift over side Max. reach | 14,687 lb |

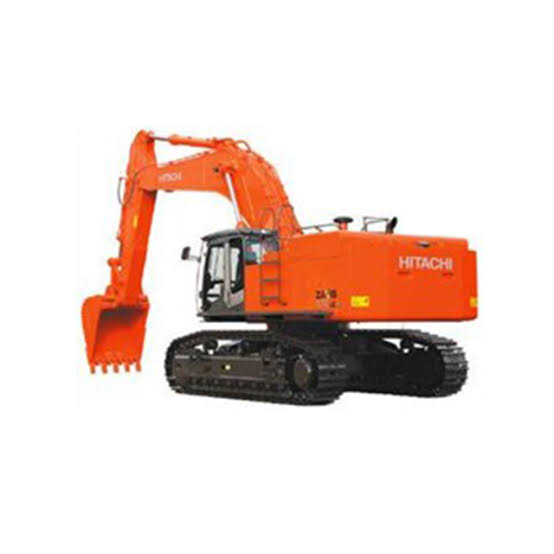

Comparable machines
