New Holland

E485

Excavator

Operating Weight
107,145 lb
Max Digging Depth
285 in
Max Digging Depth
306 in
Net Power
340.0 hp
All excavators

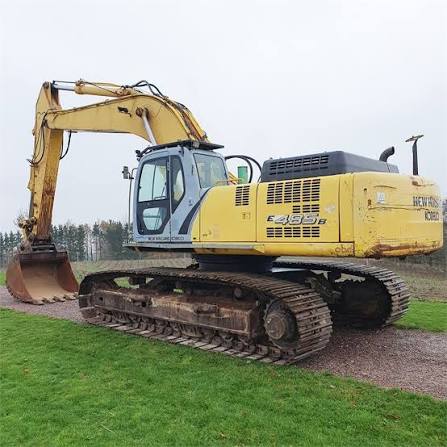

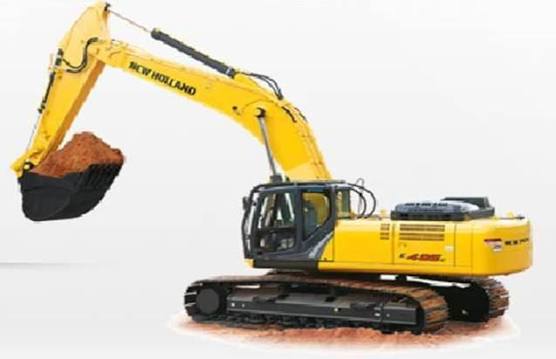

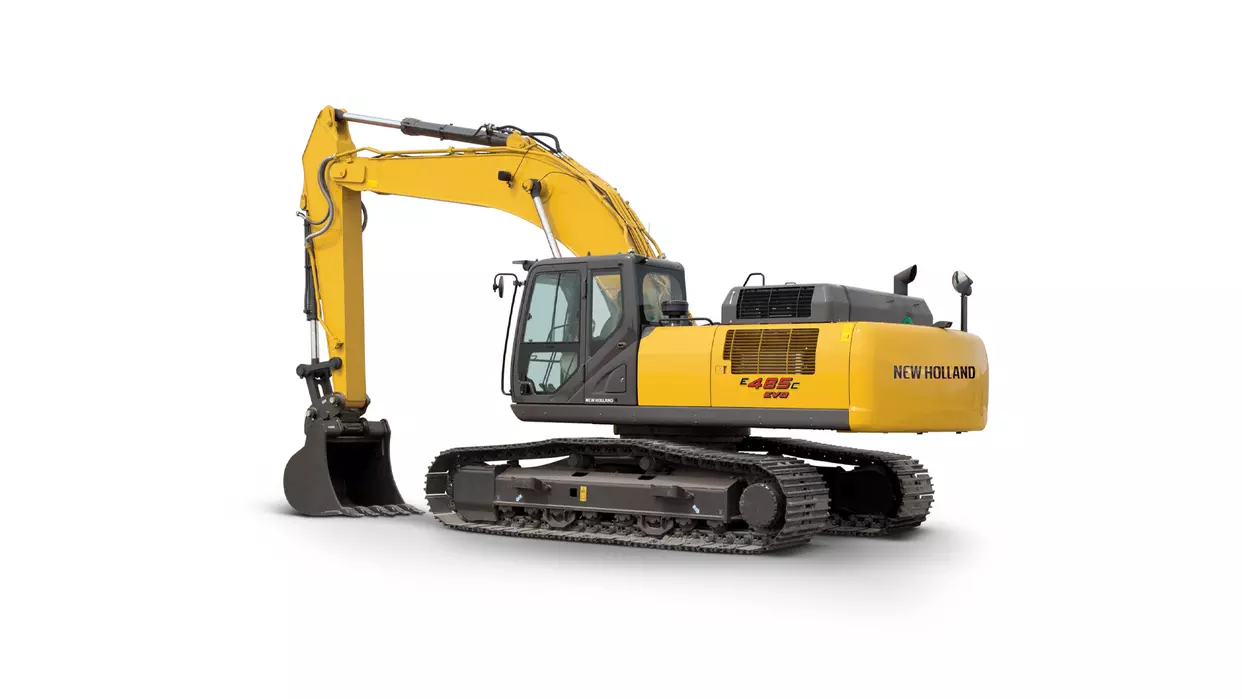

New Holland E485 Excavator
1 / 5
Image 1 of 5
Image: construction.newholland.com

Specifications

51 data points

Operating Specifications

Operating Specifications specifications
Operating Weight107,145 lb
Fuel Capacity175.2 gal
Hydraulic Pump Flow Capacity195.5 gal/min
Hydraulic System Fluid Capacity79.3 gal
Hydraulic System Relief Valve Pressure4,975 psi
Engine Oil Capacity10.1 gal
Cooling System Fluid Capacity10.4 gal
Operating Voltage24 V
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelAA-6SD1XQY
Displacement598 in³
Power Measured @1,950 rpm
Net Power340.0 hp
Aspirationturbocharged

Dimensions

Dimensions specifications
Ground Clearance31 in
Height - Top of Cab131 in
Length of Track on Ground174 in
Tail Swing Radius132 in
Width to Outside of Tracks138 in
Removal Counterweight Clearance55 in

Undercarriage

Undercarriage specifications
Ground Pressure13 psi
Track Gauge119 in
Number of Track Rollers per Side9
Max Travel Speed3.5 mph
Shoe Size24 in
Number of Carrier Rollers per Side3

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth285 in
Max Reach Along Ground445 in
Max Loading Height298 in
Max Vertical Wall Digging Depth278 in
Max Cutting Height422 in
Shipping Length of Unit480 in
Shipping Height of Unit148 in

Bucket

Bucket specifications
Reference Bucket Capacity2.20 yd³
Maximum Bucket Capacity3.00 yd³
Minimum Bucket Capacity2.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth306 in
Max Vertical Wall Digging Depth301 in
Max Cutting Height432 in
Max Loading Height306 in
Max Reach Along Ground467 in
Shipping Length of Unit478 in
Shipping Height of Unit142 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth330 in
Max Cutting Height434 in
Max Loading Height311 in
Max Vertical Wall Digging Depth325 in
Max Reach Along Ground487 in
Shipping Length of Unit478 in
Shipping Height of Unit143 in
