Liebherr

R944C

Excavator

Operating Weight
84,200 lb
Max Digging Depth
257 in
Max Digging Depth
276 in
Net Power
258.0 hp
All excavators

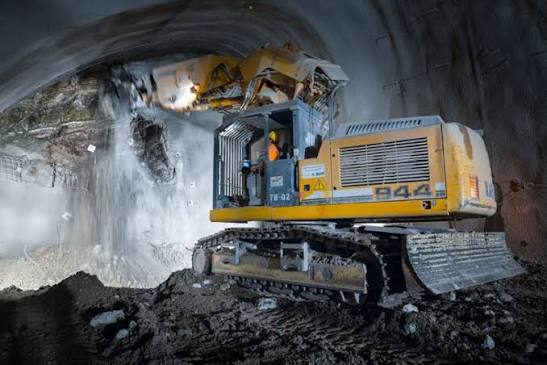

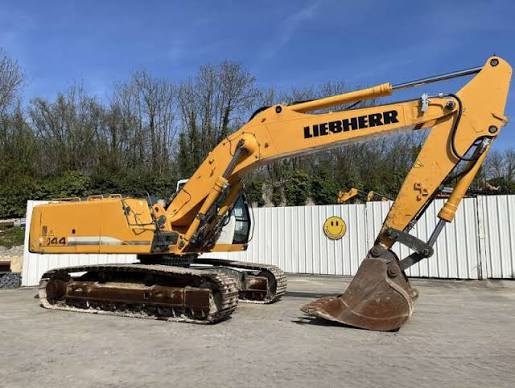

Liebherr R944C Excavator
1 / 5
Image 1 of 5
Image: bossmachinery.nl

Specifications

56 data points

Operating Specifications

Operating Specifications specifications
Operating Weight84,200 lb
Fuel Capacity174.4 gal
Hydraulic Pump Flow Capacity80.1 gal/min
Hydraulic System Fluid Capacity187.6 gal
Operating Voltage24 V
Alternator Supplied Amperage80 A

Engine

Engine specifications
Engine ModelD 936 L
Displacement641 in³
Power Measured @1,800 rpm
Net Power258.0 hp
Aspirationturbo-charged and after-cooled reduced emissions

Dimensions

Dimensions specifications
Ground Clearance22 in
Length of Track on Ground158 in
Tail Swing Radius134 in
Width to Outside of Tracks119 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.2 mph
Shoe Size20 in
Drawbar Pull75,536 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth257 in
Max Reach Along Ground408 in
Max Loading Height276 in
Max Cutting Height420 in
Shipping Length of Unit444 in
Shipping Height of Unit128 in

Bucket

Bucket specifications
Reference Bucket Capacity2.30 yd³
Maximum Bucket Capacity3.30 yd³
Minimum Bucket Capacity1.70 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed8 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth276 in
Max Cutting Height432 in
Max Loading Height285 in
Max Reach Along Ground427 in
Shipping Length of Unit438 in
Shipping Height of Unit128 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth304 in
Max Cutting Height445 in
Max Loading Height301 in
Max Reach Along Ground454 in
Shipping Length of Unit439 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth335 in
Max Cutting Height451 in
Max Reach Along Ground481 in
Max Loading Height309 in
Shipping Length of Unit442 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth272 in
Max Reach Along Ground450 in
Max Cutting Height524 in
Max Loading Height373 in
Shipping Height of Unit127 in
Shipping Length of Unit485 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth292 in
Max Reach Along Ground469 in
Max Cutting Height543 in
Max Loading Height393 in
Shipping Length of Unit485 in
Shipping Height of Unit127 in
