Sumitomo

SH330-3

Excavator

Operating Weight
72,753 lb
Max Digging Depth
289 in
Net Power
250.0 hp
All excavators

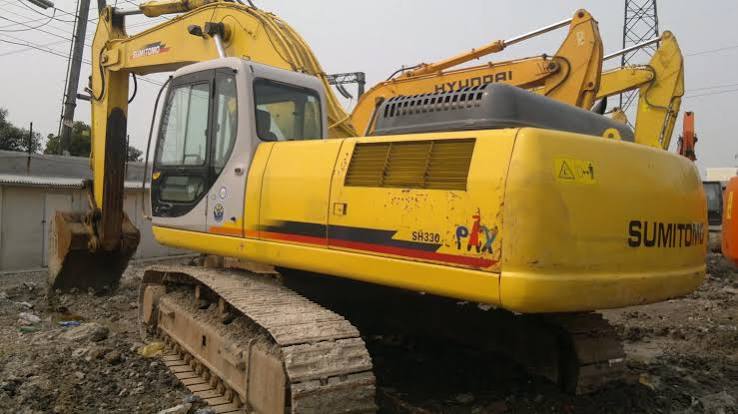

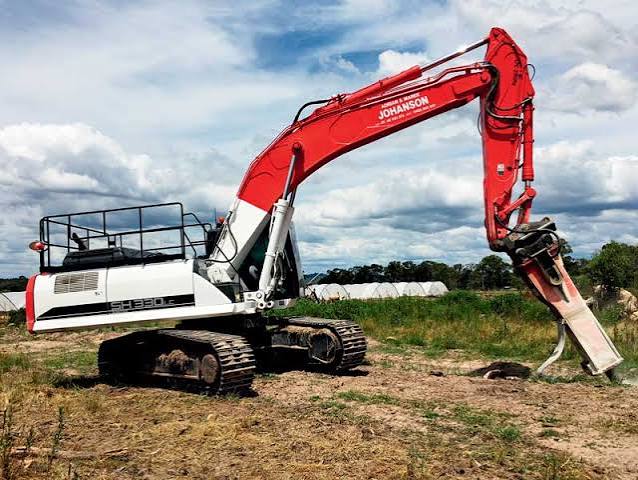

Sumitomo SH330-3 Excavator
1 / 5
Image 1 of 5
Image: sumitomokenki.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight72,753 lb
Fuel Capacity153.3 gal
Hydraulic System Fluid Capacity92.5 gal
Hydraulic System Relief Valve Pressure4,975 psi

Engine

Engine specifications
Engine ModelAA-6HK1X
Displacement475 in³
Power Measured @2,000 rpm
Net Power250.0 hp

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab130 in
Length of Track on Ground148 in
Tail Swing Radius137 in
Width to Outside of Tracks126 in

Undercarriage

Undercarriage specifications
Ground Pressure10 psi
Track Gauge103 in
Max Travel Speed3.5 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth289 in
Max Reach Along Ground441 in
Max Loading Height285 in
Max Vertical Wall Digging Depth251 in
Max Cutting Height409 in
Shipping Length of Unit435 in
Shipping Height of Unit130 in

Bucket

Bucket specifications
Reference Bucket Capacity1.90 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
