Caterpillar

328D LCR

Excavator

Max Digging Depth
252 in
Net Power
204.0 hp
All excavators

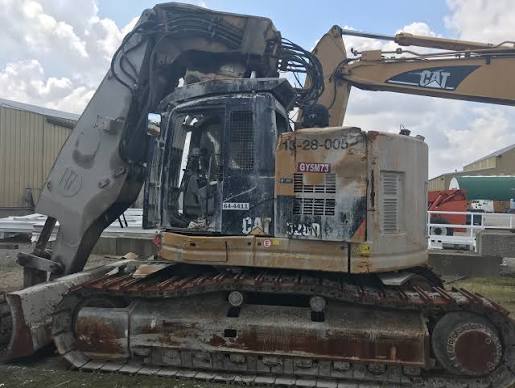

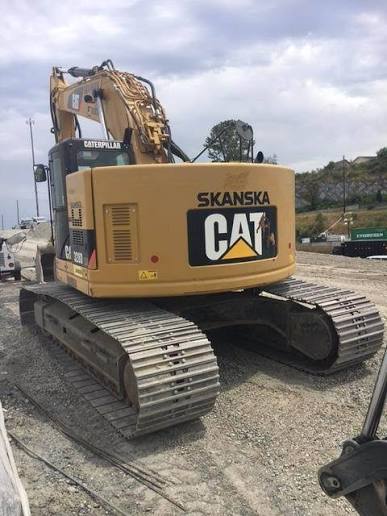

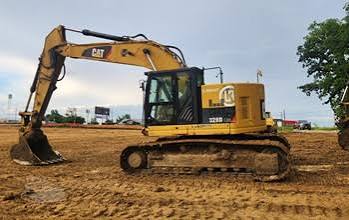

Caterpillar 328D LCR Excavator
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

66 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity106.0 gal
Hydraulic Pump Flow Capacity62.0 gal/min
Hydraulic System Fluid Capacity76.6 gal
Hydraulic System Relief Valve Pressure5,221 psi
Engine Oil Capacity8.5 gal
Cooling System Fluid Capacity8.5 gal
Operating Voltage24 V
Swing Drive Fluid Capacity2.6 gal
Alternator Supplied Amperage65 A

Engine

Engine specifications
Engine ModelCat C7 ACERT
Displacement440 in³
Net Power204.0 hp
Stroke5 in
Bore4 in
Net Power - ISO 9249204.0 hp
Net Power - SAE J1349202.0 hp
Net Power - EEC 80/1269204.0 hp

Weights

Weights specifications
Operating Weight87,850 lb

Hydraulic System

Hydraulic System specifications
Maximum Pressure - Swing3,989 psi
Maximum Pressure - Travel5,076 psi
Boom Cylinder - Bore6 in
Boom Cylinder - Stroke55 in
Main Implement System - Maximum Flow (2x)62.0 gal/min
Stick Cylinder - Bore6 in
Stick Cylinder - Stroke65 in
Maximum Pressure - Equipment5,076 psi

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab120 in
Tail Swing Radius76 in
Width to Outside of Tracks135 in
Removal Counterweight Clearance48 in

Undercarriage

Undercarriage specifications
Track Gauge102 in
Number of Track Rollers per Side9
Max Travel Speed2.6 mph
Shoe Size34 in
Number of Shoes per Side49
Number of Carrier Rollers per Side2
Drawbar Pull67,443 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Loading Height318 in
Max Vertical Wall Digging Depth246 in
Max Cutting Height438 in
Shipping Length of Unit388 in
Shipping Height of Unit133 in

Bucket

Bucket specifications
Reference Bucket Capacity1.60 yd³
Maximum Bucket Capacity2.69 yd³

Drive System

Drive System specifications
Maximum Drawbar Pull67,443 lb

Service Refill Capacities

Service Refill Capacities specifications
Cooling System8.5 gal
Hydraulic System - Including Tank76.6 gal
Final Drive - Each2.1 gal
Engine Oil8.5 gal
Hydraulic Tank40.4 gal
Fuel Tank Capacity106.0 gal
Swing Drive2.6 gal

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth252 in
Max Vertical Wall Digging Depth227 in
Max Cutting Height431 in
Max Loading Height308 in
Max Reach Along Ground397 in
Shipping Length of Unit388 in
Shipping Height of Unit134 in

Standards

Standards specifications
BrakesSAE J1026 APR90
Cab/FOGSSAE J1356 FEB88 ISO 10262

Track

Track specifications
Number of Shoes - Each Side - Long Undercarriage49
Number of Track Rollers - Each Side - Long Undercarriage9
Number of Carrier Rollers - Each Side - Long Undercarriage2
