JCB

JS240L

Excavator

Operating Weight
54,278 lb
Max Digging Depth
246 in
Net Power
161.0 hp
All excavators

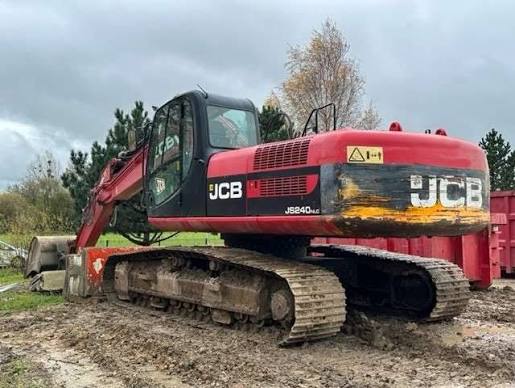

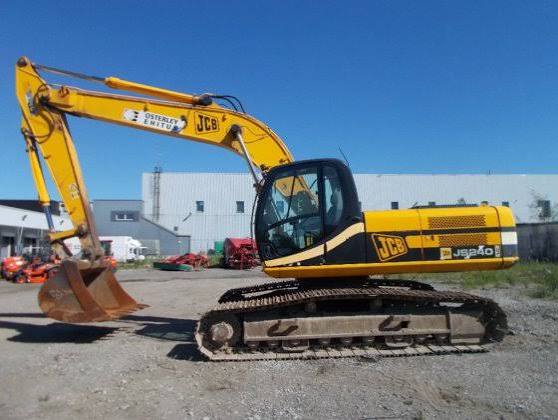

JCB JS240L Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

13 data points

Operating Specifications

Operating Specifications specifications
Operating Weight54,278 lb
Hydraulic Pump Flow Capacity113.1 gal/min
Hydraulic System Relief Valve Pressure5,308 psi

Engine

Engine specifications
Net Power161.0 hp

Dimensions

Dimensions specifications
Ground Clearance19 in
Length of Track on Ground119 in
Tail Swing Radius151 in
Width to Outside of Tracks130 in

Undercarriage

Undercarriage specifications
Shoe Size28 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth246 in
Max Reach Along Ground376 in
Max Loading Height276 in
Shipping Length of Unit397 in
