New Holland

E200SR

Excavator

Operating Weight
43,872 lb
Max Digging Depth
243 in
Max Digging Depth
258 in
Net Power
125.0 hp
All excavators

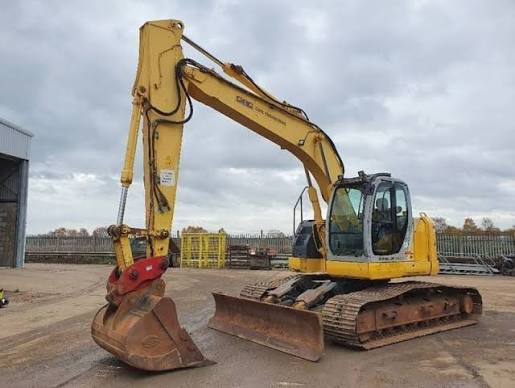

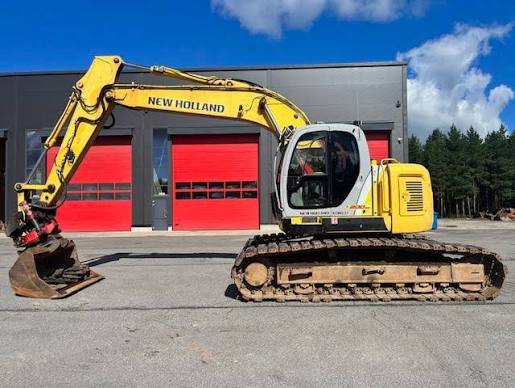

New Holland E200SR Excavator
1 / 5
Image 1 of 5
Image: krutilvertel.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Operating Weight43,872 lb
Fuel Capacity71.4 gal
Hydraulic Pump Flow Capacity93.0 gal/min
Hydraulic System Fluid Capacity44.2 gal
Hydraulic System Relief Valve Pressure5,076 psi
Engine Oil Capacity3.5 gal
Cooling System Fluid Capacity4.9 gal
Operating Voltage24 V
Swing Drive Fluid Capacity2.0 gal
Alternator Supplied Amperage30 A

Engine

Engine specifications
Engine Model- 4BG1TXBFA
Displacement264 in³
Power Measured @2,200 rpm
Net Power125.0 hp
Aspirationturbo intercooler

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab121 in
Length of Track on Ground133 in
Tail Swing Radius64 in
Width to Outside of Tracks110 in
Removal Counterweight Clearance41 in

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge133 in
Number of Track Rollers per Side7
Max Travel Speed3.2 mph
Shoe Size24 in
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth243 in
Max Reach Along Ground347 in
Max Loading Height291 in
Max Vertical Wall Digging Depth186 in
Max Cutting Height403 in
Shipping Length of Unit323 in
Shipping Height of Unit121 in

Bucket

Bucket specifications
Reference Bucket Capacity0.90 yd³
Maximum Bucket Capacity1.10 yd³
Minimum Bucket Capacity0.71 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth258 in
Max Vertical Wall Digging Depth202 in
Max Cutting Height415 in
Max Loading Height302 in
Max Reach Along Ground362 in
Shipping Height of Unit121 in
