Hitachi

EX135USR

Excavator

Operating Weight
29,101 lb
Max Digging Depth
220 in
Net Power
80.5 hp
All excavators

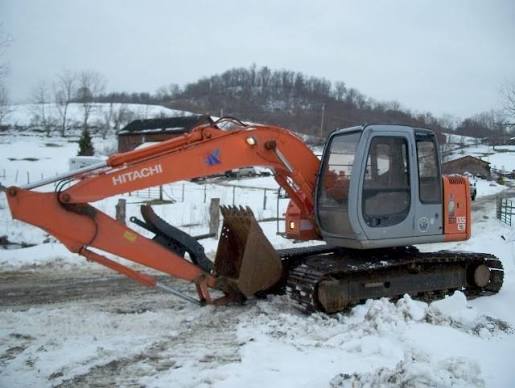

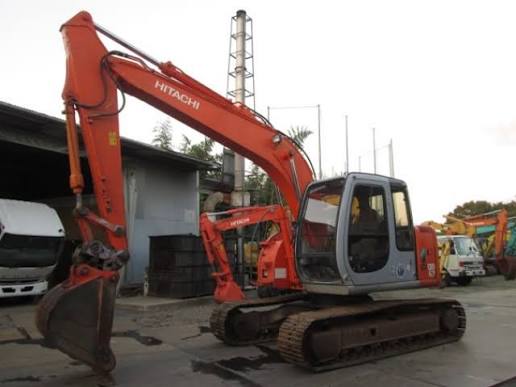

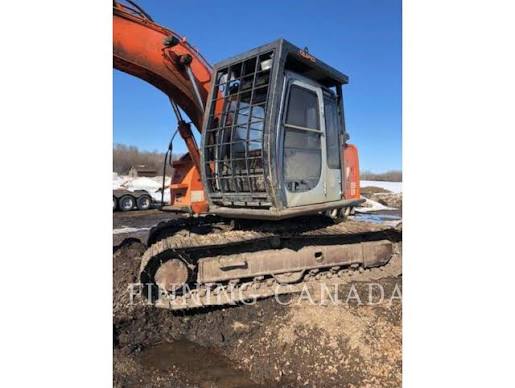

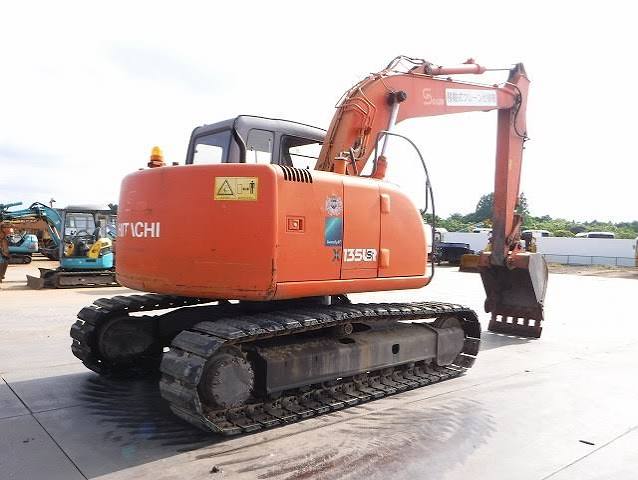

Hitachi EX135USR Excavator
1 / 5
Image 1 of 5
Image: ironsearch.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight29,101 lb
Fuel Capacity66.1 gal
Hydraulic System Fluid Capacity18.3 gal
Engine Oil Capacity4.3 gal

Engine

Engine specifications
Engine ModelA-4BG1T
Power Measured @2,100 rpm
Net Power80.5 hp
Engine MakeIsuzu

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab108 in
Length of Track on Ground142 in
Tail Swing Radius67 in
Width to Outside of Tracks98 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Max Travel Speed3.2 mph
Shoe Size20 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth220 in
Max Reach Along Ground328 in
Max Loading Height243 in
Max Vertical Wall Digging Depth198 in
Max Cutting Height337 in

Bucket

Bucket specifications
Maximum Bucket Capacity0.80 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed13 rpm
