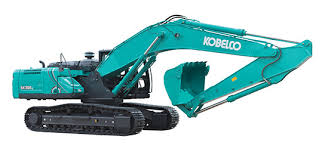

Kobelco
SK350LC-10 H&W
- Operating Weight
- 87,744 lb
- Max Digging Depth
- 287 in
- Max Digging Depth
- 320 in
- Net Power
- 270.0 hp
1 / 5
Image 1 of 5
Specifications
35 data points
Operating Specifications
| Operating Weight | 87,744 lb |
|---|---|
| Fuel Capacity | 132.9 gal |
| DEF tank capacity | 22.0 gal |
Engine
| Engine Model | HINO J08EVV-KSDK |
|---|---|
| Displacement | 469 in³ |
| Power Measured @ | 2,100 rpm |
| Net Power | 270.0 hp |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 729 lb-ft |
| Engine Type | Direct injection water-cooled 4-cycle 6-cylinder diesel engine with intercooler turbo-charger (Complies with EPA Tier IV Final) |
Dimensions
| Ground Clearance | 32 in |
|---|---|
| Height - Top of Cab | 141 in |
| Tail Swing Radius | 133 in |
| Track Gauge | 118 in |
Undercarriage
| Ground Pressure | 11 psi |
|---|---|
| Max Travel Speed | 3.6 mph |
| Shoe Size | 28 in |
Boom/Stick Excavator Option 1
| Max Digging Depth | 287 in |
|---|---|
| Max Vertical Wall Digging Depth | 250 in |
| Minimum swing radius | 170 in |
| Max Digging Reach | 434 in |
| Max Digging Reach on Ground | 433 in |
| Max Digging Height | 431 in |
| Max Dumping Clearance | 302 in |
| Min Dumping Clearance | 118 in |
General Specifications
| MaxPumpFlow | 77.7 gal/min |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 320 in |
|---|---|
| Max Vertical Wall Digging Depth | 275 in |
| Minimum swing radius | 175 in |
| Max Digging Reach | 472 in |
| Max Digging Reach on Ground | 463 in |
| Max Dumping Clearance | 311 in |
| Min Dumping Clearance | 73 in |
| Max. digging height | 434 in |
| Horizontal Digging Stroke - Ground | 1 in |
