Case

CX80C

Excavator

Max Digging Depth
166 in
All excavators

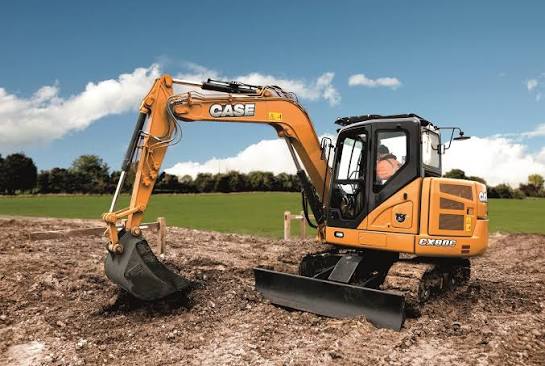

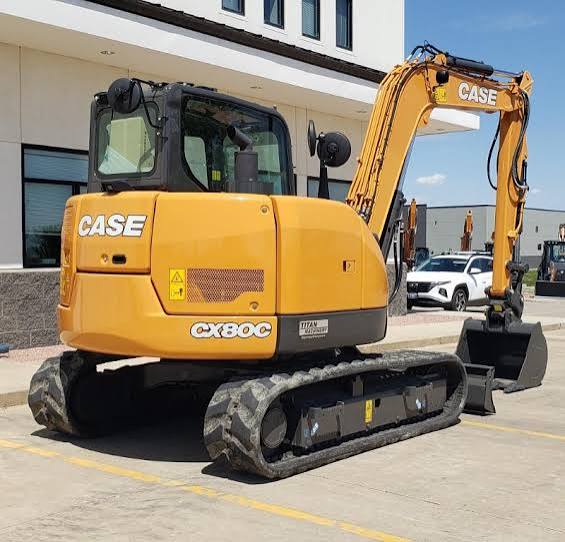

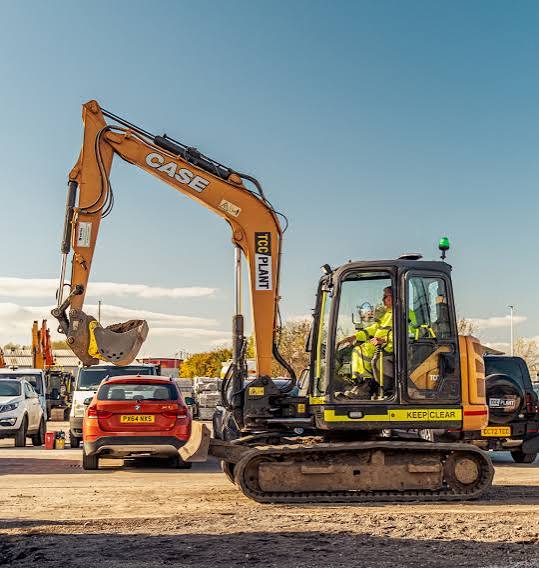

Case CX80C Excavator
1 / 5
Image 1 of 5
Image: casece.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Voltage24 V
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelIsuzu AP-4LE2X
Displacement134 in³
Power Measured @2,000 rpm
Number of Cylinders4
Aspiration1800
Bore3 in
Stroke4 in

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab109 in
Overall Length254 in
Tail Swing Radius67 in
Overall Height109 in

Undercarriage

Undercarriage specifications
Ground Pressure1 psi
Track Gauge74 in
Drawbar Pull13,376 lb

Fluid Capacities

Fluid Capacities specifications
Fuel Tank31.7 gal
Hydraulic system25.4 gal
Engine Oil3.0 gal

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth166 in
Max Reach Along Ground274 in

General Specifications

General Specifications specifications
Operating Weight lbs (kg)18,900 (8,590) Starting 2025 Model Year
Digging Depth ft (m)15.3 (4.7) Starting 2025 Model Year
Digging Reach ft. (m)24.3 (7.4) Starting 2025 Model Year
Engine hp (kW)53.6 (40) Starting 2025 Model Year

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
Swing Torque12,538 lb-ft
