Case

SR200

Skid Steer Loader

Operating Weight
6,900 lb
Bucket Capacity
0.60 yd³
Max Speed
11.9 mph
Gross Power
70.0 hp
All skid steer loaders

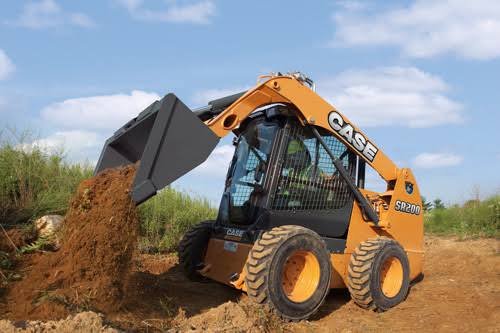

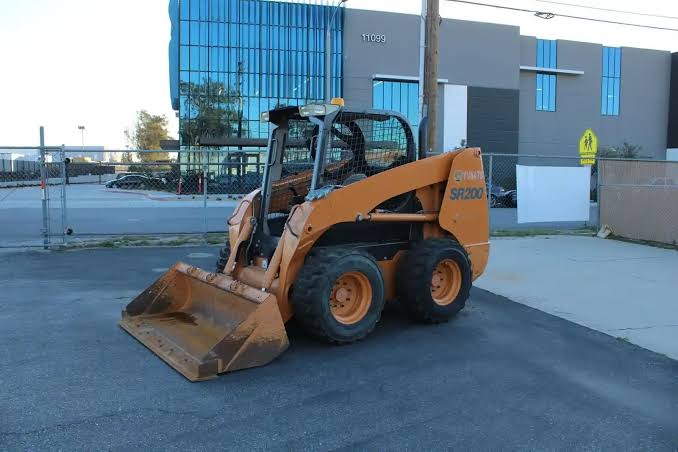

Case SR200 Skid Steer Loader
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,900 lb
Max Speed11.9 mph
Fuel Capacity20.0 gal
Hydraulic System Fluid Capacity5.3 gal
Tire Size10 x 12.5
Operating Voltage12 V
Alternator Supplied Amperage95 A
Engine Oil Fluid Capacity2.7 gal
Chain Box Fluid Capacity - each side1.8 gal
Operating Speed7.2 mph

Engine

Engine specifications
Engine Model432T/M3
Displacement195 in³
Power Measured @2,500 rpm
Gross Power70.0 hp
Number of Cylinders4
AspirationTurbocharged
Torque Measured @1,400 rpm
Max Torque203 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity8.2 gal/min
Relief Valve Pressure3,000 psi
Pump TypeGear

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab79 in
Wheelbase46 in
Width Over Tires65 in
Reach at Max Lift and Dump20 in
Length with Bucket131 in
Clearance at Max Lift and Dump100 in
Turning Radius from Center - inc bucket80 in
Turning Radius from Center - machine rear63 in
Length w/o Bucket106 in

Loader

Loader specifications
Bucket Capacity0.60 yd³
Operating Load Rating2,000 lb
Tipping Angle4,000 °
Operating Width64 in
Bucket Width66 in
