Case

SR210

Skid Steer Loader

Operating Weight
6,967 lb
Max Speed
7.1 mph
All skid steer loaders

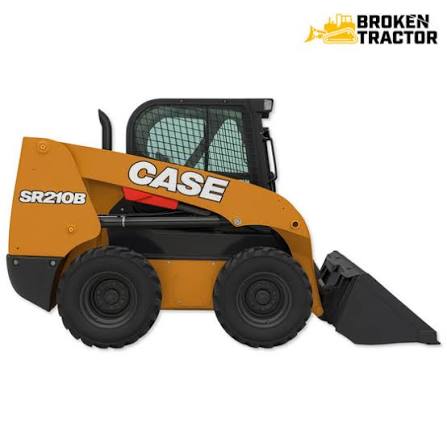

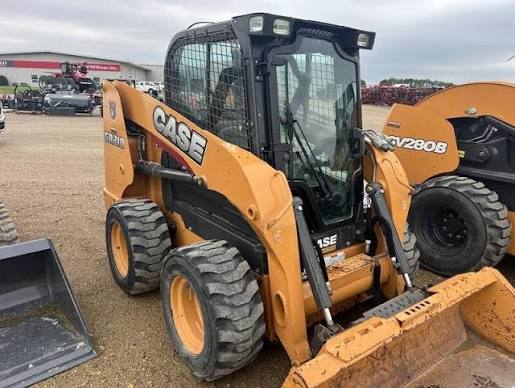

Case SR210 Skid Steer Loader
1 / 5
Image 1 of 5
Image: casece.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,967 lb
Max Speed7.1 mph
Fuel Capacity19.5 gal
Hydraulic System Fluid Capacity8.6 gal
Operating Voltage12 V
Alternator Supplied Amperage120 A
Engine Oil Fluid Capacity2.5 gal
Chain Box Fluid Capacity - each side6.9 gal
Shipping Weight - Empty6,669 lb

Engine

Engine specifications
Engine ModelFPT F5H FL463 A*F001
Displacement208 in³
Power Measured @2,500 rpm
Number of Cylinders4
Torque Measured @1,400 rpm
Max Torque232 lb-ft
Bore4 in
Stroke4 in
Starter4.3 hp

Hydraulic System

Hydraulic System specifications
Displacement-Standard aux2 in³
Displacement-High-flow aux1 in³
Pump Flow Capacity24.2 gal/min
Relief Valve Pressure3,050 psi
Pump TypeGear
Dump Time2.2 s
Lower Time1.8 s

Dimensions

Dimensions specifications
Ground Clearance8 in
Wheelbase46 in
Width Over Tires71 in
Height - Top of ROPS/FOPS79 in
Length with Bucket130 in
Length w/o Bucket106 in
Hinge pin height - fully raised123 in

General Specifications

General Specifications specifications
Engine Power HP (KW)74 (55) — Starting 2019 Model Year
Operating Width IN. (CM)69.1 (175.5) — Starting 2019 Model Year
OPERATING LOAD LBS. (KG)2,100 (953) — Starting 2019 Model Year
Rated Operating Capacity LBS (KG) 50%2,100 (953) — Starting 2020 Model Year

Loader

Loader specifications
Operating Load Rating2,100 lb
Operating Width70 in
Tipping load (ISO 14397)4,200 lb
