Case
Tata Hitachi
TWL3036
Wheel Loader
41 specifications
1 / 5

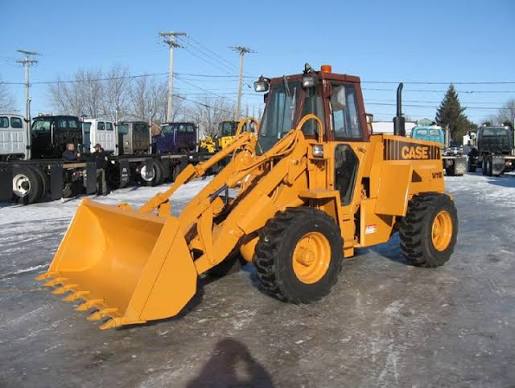

Image 1 of 5
Specifications
36 data points
Operating Specifications
| Fuel Capacity | 28.1 gal |
|---|---|
| Hydraulic System Fluid Capacity | 14.1 gal |
| Operating Voltage | 12 V |
| Engine Oil Fluid Capacity | 1.8 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 42 A |
| Cooling System Fluid Capacity | 4.0 gal |
| Transmission Fluid Capacity | 3.6 gal |
Engine
| Engine Model | G207D |
|---|---|
| Displacement | 208 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 60.0 hp |
| Net Power | 55.0 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,300 rpm |
| Engine Make | Case |
| Stroke | 4 in |
| Bore | 4 in |
Hydraulic System
| Raise Time | 5.2 s |
|---|---|
| Lower Time | 5.3 s |
| Dump Time | 1.9 s |
Dimensions
| Ground Clearance | 11 in |
|---|---|
| Height - Top of Cab | 95 in |
| Wheelbase | 93 in |
| Overall Length | 202 in |
| Width Over Tires | 69 in |
| Hinge Pin - Max Height | 125 in |
| Overall Height | 156 in |
Transmission
| Max Speed - Forward | 22.7 mph |
|---|---|
| Max Speed - Reverse | 22.7 mph |
| Transmission Type | Powershift |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 0.80 yd³ |
|---|---|
| Bucket Capacity - struck | 0.71 yd³ |
| Dump Clearance at Max Raise | 104 in |
