Case
Tata Hitachi
TWL3036
Wheel Loader
41 specifications
1 / 5

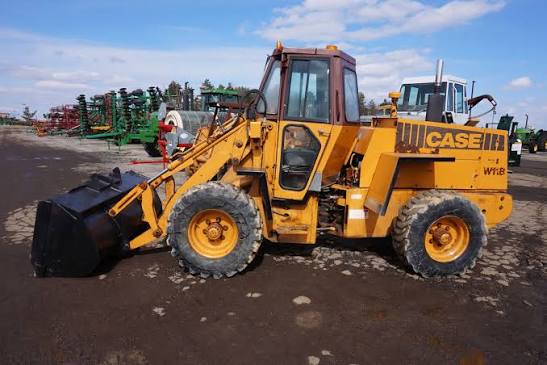

Image 1 of 5
Specifications
43 data points
Operating Specifications
| Fuel Capacity | 28.1 gal |
|---|---|
| Tire Size | 15.00 X19.5 |
| Hydraulic System Fluid Capacity | 14.1 gal |
| Operating Voltage | 12 V |
| Turning Radius | 329 in |
| Engine Oil Fluid Capacity | 3.0 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 42 A |
| Cooling System Fluid Capacity | 5.1 gal |
| Transmission Fluid Capacity | 3.6 gal |
Engine
| Engine Model | 4-390 |
|---|---|
| Displacement | 239 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 71.0 hp |
| Net Power | 66.0 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,200 rpm |
| Engine Make | Case |
| Bore | 4 in |
| Stroke | 5 in |
| Net Torque | 178 lb-ft |
Hydraulic System
| Pump Flow Capacity | 26.0 gal/min |
|---|---|
| Raise Time | 5.2 s |
| Lower Time | 5.3 s |
| Dump Time | 1.9 s |
| Pump Type | Dual tandem |
| Total cycle | 12.4 s |
Dimensions
| Ground Clearance | 11 in |
|---|---|
| Height - Top of Cab | 96 in |
| Wheelbase | 93 in |
| Width Over Tires | 71 in |
| Reach at Max Lift and Dump | 41 in |
| Length with Bucket on Ground | 206 in |
| Hinge Pin - Max Height | 125 in |
Transmission
| Max Speed - Forward | 22.3 mph |
|---|---|
| Max Speed - Reverse | 22.3 mph |
| Transmission Type | Power shift |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 0.80 yd³ |
|---|---|
| Bucket Capacity - struck | 0.71 yd³ |
| Dump Clearance at Max Raise | 54 in |
| Breakout Force | 110,076,804 lb |
