Case
Hitachi
EX135USR
Excavator
23 specifications
1 / 5

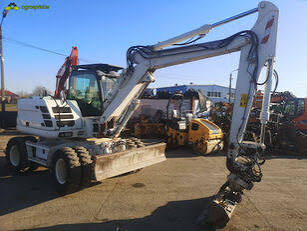

Image 1 of 5
Specifications
42 data points
Operating Specifications
| Operating Weight | 26,566 lb |
|---|---|
| Fuel Capacity | 42.8 gal |
| Hydraulic Pump Flow Capacity | 39.9 gal/min |
| Hydraulic System Fluid Capacity | 29.1 gal |
| Hydraulic System Relief Valve Pressure | 5,076 psi |
| Engine Oil Capacity | 3.5 gal |
| Cooling System Fluid Capacity | 5.9 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 A |
| Tire Size | 600/40-22.5 |
Engine
| Engine Model | 439TA-M2 |
|---|---|
| Displacement | 238 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 117.0 hp |
| Number of Cylinders | 4 |
| Aspiration | turbocharged |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 122 in |
| Wheelbase | 95 in |
| Overall Width | 8 in |
| Tail Swing Radius | 66 in |
| Upper Structure Clearance | 46 in |
Transmission
| Max Travel Speed | 20.6 mph |
|---|---|
| Transmission Type | Hydrostatic |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Swing Mechanism
| Swing Speed | 8 rpm |
|---|---|
| Swing Torque | 19,176 lb-ft |
Boom/Stick Mobile Excavator Option 1
| Max Digging Depth | 178 in |
|---|---|
| Max Cutting Height | 346 in |
| Max Reach Along Ground | 335 in |
| Max Loading Height | 245 in |
| Shipping Length of Unit | 305 in |
| Shipping Height of Unit | 122 in |
| Max Vertical Wall Dig Depth | 102 in |
Boom/Stick Mobile Excavator Option 2
| Max Digging Depth | 191 in |
|---|---|
| Max Cutting Height | 357 in |
| Max Reach Along Ground | 348 in |
| Max Loading Height | 257 in |
| Shipping Height of Unit | 122 in |
| Shipping Length of Unit | 319 in |
| Max Vertical Wall Dig Depth | 113 in |
