Case

WX145

Excavator

Net Power
117.0 hp
All excavators

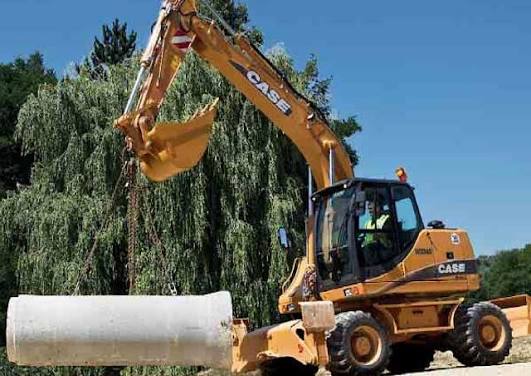

Case WX145 Excavator
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity55.5 gal
Hydraulic Pump Flow Capacity87.2 gal/min
Hydraulic System Fluid Capacity29.1 gal
Hydraulic System Relief Valve Pressure5,004 psi
Engine Oil Capacity4.3 gal
Cooling System Fluid Capacity6.9 gal
Operating Voltage24 V
Alternator Supplied Amperage70 A
Hydraulic Pump Type3 Variable Displacement Axial Piston
Tire Size19-19.5XF

Engine

Engine specifications
Engine Model439TA-M2
Displacement238 in³
Power Measured @2,000 rpm
Net Power117.0 hp
Number of Cylinders4
AspirationTurbocharged

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab121 in
Wheelbase101 in
Overall Width8 in
Tail Swing Radius73 in
Upper Structure Clearance49 in
Overall Width - Outriggers Down155 in

Transmission

Transmission specifications
Max Travel Speed18.7 mph
Transmission Typepowershift
Number of Forward Gears2
Number of Reverse Gears2

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
Swing Torque26,552 lb-ft

Boom/Stick Mobile Excavator Option 1

Boom/Stick Mobile Excavator Option 1 specifications
Max Digging Depth190 in
Max Cutting Height331 in
Max Reach Along Ground316 in
Max Loading Height236 in
Max Vertical Wall Dig Depth143 in

Boom/Stick Mobile Excavator Option 2

Boom/Stick Mobile Excavator Option 2 specifications
Max Digging Depth202 in
Max Cutting Height331 in
Max Reach Along Ground324 in
Max Loading Height236 in
Max Vertical Wall Dig Depth138 in
