Caterpillar

205B LC

Excavator

Operating Weight
27,778 lb
Max Digging Depth
174 in
Max Digging Depth
193 in
Net Power
80.5 hp
All excavators

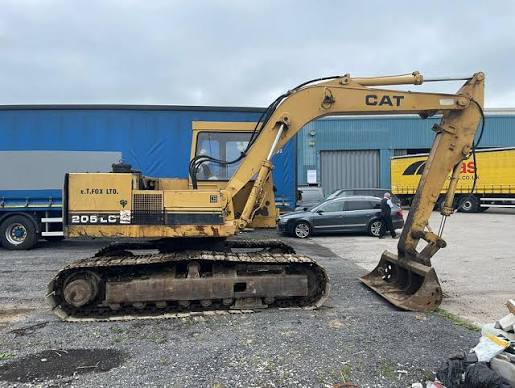

Caterpillar 205B LC Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight27,778 lb
Fuel Capacity56.8 gal
Hydraulic Pump Flow Capacity52.9 gal/min
Hydraulic System Fluid Capacity52.9 gal
Hydraulic System Relief Valve Pressure4,640 psi

Engine

Engine specifications
Engine Model3114
Displacement269 in³
Net Power80.5 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab118 in
Length of Track on Ground113 in
Tail Swing Radius77 in
Width to Outside of Tracks98 in
Removal Counterweight Clearance43 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge76 in
Max Travel Speed2.8 mph
Shoe Size24 in
Drawbar Pull31,473 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth174 in
Max Reach Along Ground299 in
Max Loading Height211 in
Max Vertical Wall Digging Depth133 in
Max Cutting Height302 in

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth193 in
Max Vertical Wall Digging Depth143 in
Max Cutting Height308 in
Max Loading Height219 in
Max Reach Along Ground316 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth212 in
Max Cutting Height308 in
Max Loading Height221 in
Max Vertical Wall Digging Depth145 in
Max Reach Along Ground332 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth231 in
Max Cutting Height318 in
Max Reach Along Ground350 in
Max Loading Height230 in
Max Vertical Wall Dig Depth162 in
