Caterpillar

206

Excavator

Operating Weight
26,863 lb
Net Power
71.1 hp
All excavators

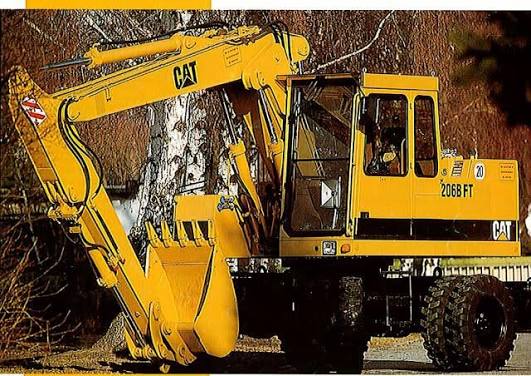

Caterpillar 206 Excavator
1 / 5
Image 1 of 5
Image: global-ce.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight26,863 lb
Fuel Capacity48.9 gal
Hydraulic Pump Flow Capacity49.2 gal/min
Hydraulic System Fluid Capacity63.5 gal
Hydraulic System Relief Valve Pressure4,351 psi
Tire Sizedual 9.00-20

Engine

Engine specifications
Engine Model4.236
Displacement236 in³
Net Power71.1 hp

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab125 in
Wheelbase95 in
Overall Width8 in
Upper Structure Clearance49 in

Boom/Stick Mobile Excavator Option 1

Boom/Stick Mobile Excavator Option 1 specifications
Max Digging Depth175 in
Max Cutting Height259 in
Max Reach Along Ground285 in
Max Loading Height181 in

Boom/Stick Mobile Excavator Option 2

Boom/Stick Mobile Excavator Option 2 specifications
Max Digging Depth194 in
Max Cutting Height264 in
Max Reach Along Ground305 in
Max Loading Height189 in
Shipping Height of Unit122 in
Shipping Length of Unit292 in

Boom/Stick Mobile Excavator Option 3

Boom/Stick Mobile Excavator Option 3 specifications
Max Digging Depth217 in
Max Cutting Height259 in
Max Reach Along Ground319 in
Max Loading Height181 in

Boom/Stick Mobile Excavator Option 4

Boom/Stick Mobile Excavator Option 4 specifications
Max Digging Depth163 in
Max Cutting Height304 in
Max Reach Along Ground299 in
Max Loading Height231 in
