Caterpillar

214

Excavator

Net Power
102.0 hp
All excavators

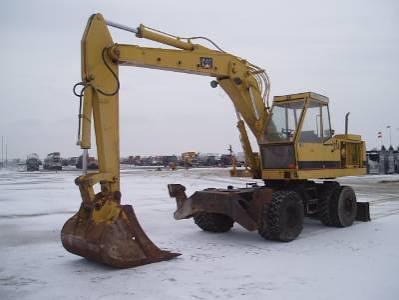

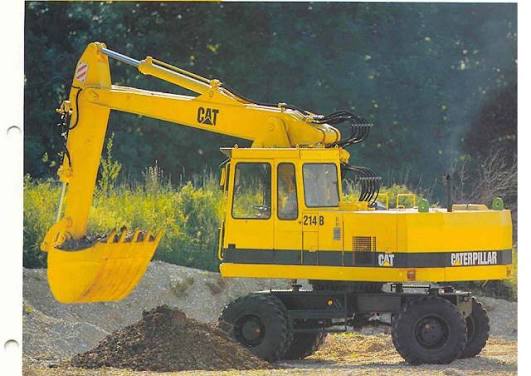

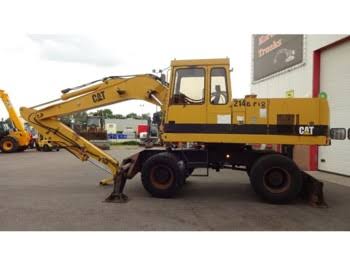

Caterpillar 214 Excavator
1 / 5
Image 1 of 5
Image: europe-construction-equipment.com

Specifications

53 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity52.9 gal
Hydraulic Pump Flow Capacity45.0 gal/min
Hydraulic System Fluid Capacity84.6 gal
Hydraulic System Relief Valve Pressure4,351 psi
Engine Oil Capacity4.7 gal
Cooling System Fluid Capacity8.0 gal
Operating Voltage24 V
Hydraulic Pump TypeTwo variable desplacement piston pumps
Tire Sizedual 10.00-20
Oscillating Axle Angle17 °
Front Diff Fluid Capacity2.7 gal
Rear Diff Fluid Capacity3.5 gal
Max Steering Angle30 °

Engine

Engine specifications
Engine Model6.354.4P
Displacement354 in³
Power Measured @2,150 rpm
Net Power102.0 hp
Number of Cylinders6
AspirationNaturally

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab124 in
Wheelbase100 in
Overall Width8 in
Tail Swing Radius91 in
Upper Structure Clearance49 in
Overall Width - Outriggers Down135 in

Transmission

Transmission specifications
Max Travel Speed12.4 mph
Transmission TypeFully hydrostatic

Bucket

Bucket specifications
Reference Bucket Capacity0.99 yd³
Maximum Bucket Capacity1.20 yd³
Minimum Bucket Capacity0.41 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Mobile Excavator Option 1

Boom/Stick Mobile Excavator Option 1 specifications
Max Digging Depth194 in
Max Cutting Height296 in
Max Reach Along Ground316 in
Max Loading Height217 in
Shipping Length of Unit325 in
Shipping Height of Unit124 in

Boom/Stick Mobile Excavator Option 2

Boom/Stick Mobile Excavator Option 2 specifications
Max Digging Depth212 in
Max Cutting Height300 in
Max Reach Along Ground336 in
Shipping Height of Unit124 in
Shipping Length of Unit326 in

Boom/Stick Mobile Excavator Option 3

Boom/Stick Mobile Excavator Option 3 specifications
Max Digging Depth234 in
Max Reach Along Ground348 in
Shipping Height of Unit124 in
Shipping Length of Unit328 in

Boom/Stick Mobile Excavator Option 4

Boom/Stick Mobile Excavator Option 4 specifications
Max Digging Depth178 in
Max Cutting Height347 in
Max Reach Along Ground329 in
Max Loading Height264 in
Shipping Height of Unit124 in
Shipping Length of Unit325 in
