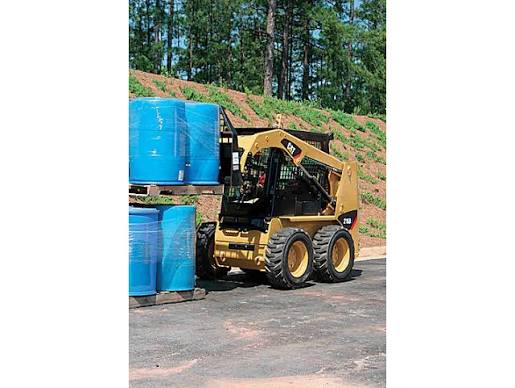

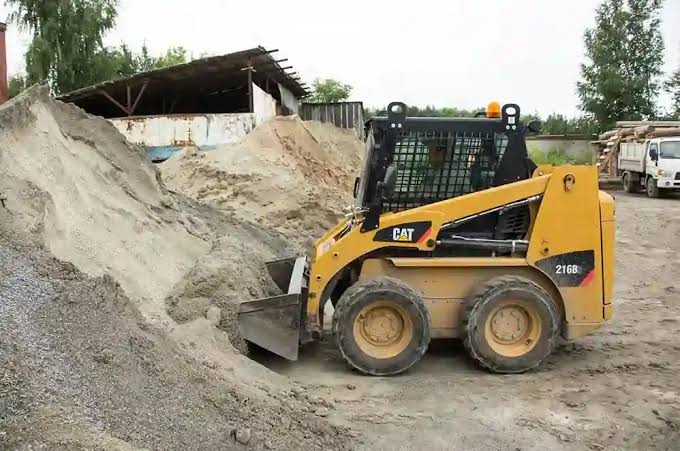

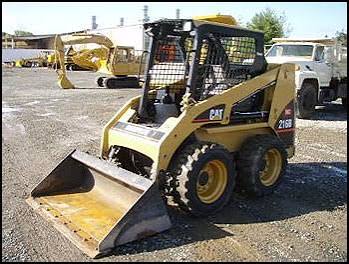

216B

Specifications

69 data points

Operating Specifications specifications
Operating Weight	5,708 lb
Max Speed	7.8 mph
Fuel Capacity	17.2 gal
Hydraulic System Fluid Capacity	14.6 gal
Tire Size	10x16.5 6PR
Operating Voltage	12 V
Alternator Supplied Amperage	65 A
Engine Oil Fluid Capacity	2.2 gal
Cooling System Fluid Capacity	2.7 gal
Chain Box Fluid Capacity - each side	1.6 gal
Breakout Force - Tilt Cylinder	3,787 lb
Rated Operating Capacity	1,400 lb
Tipping Load	2,800 lb
Rated Operating Capacity with Optional Counterweight	1,500 lb
Breakout Force - Lift Cylinder	3,057 lb

Weights specifications
Operating Weight	5,709 lb

Dimensions specifications
Ground Clearance	8 in
Wheelbase	40 in
Width Over Tires	61 in
Reach at Max Lift and Dump	20 in
Length with Bucket on Ground	127 in
Length with Bucket	128 in
Clearance at Max Lift and Dump	86 in
Turning Radius from Center - inc bucket	76 in
Turning Radius from Center - machine rear	59 in
Length w/o Bucket	100 in
Length - without Bucket	99 in
Wheel Base	40 in
Bucket Pin Height - Maximum Lift	113 in
Maximum Overall Height	146 in
Bucket Pin Height - Carry Position	9 in
Clearance at Maximum Lift and Dump	85 in
Reach - Maximum Lift/Dump	20 in
Turn Radius from Center - Bucket	76 in
Turn Radius from Center - Coupler	47 in
Turn Radius from Center - Rear	59 in
Maximum Reach - With Arms Parallel	50 in
Vehicle Width over Tires	60 in
Bumper Overhang - Rear Axle	38 in

Cab & Operator specifications
ROPS	SAE J1040 MAY94 and ISO3471:1994
FOPS	SAEJ/ISO 3449 APR98 Level I and ISO3449:1992 Level I
FOPS Level II	SAEJ/ISO 3449 APR 98 Level II and ISO 3449:1992 Level II (optional)
