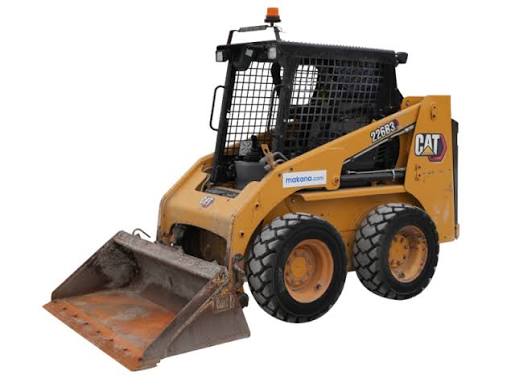

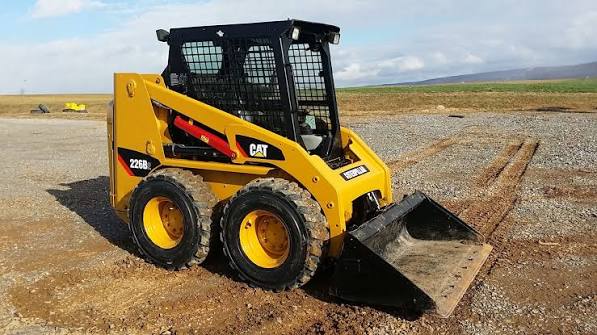

226B II

Specifications

75 data points

Operating Specifications specifications
Operating Weight	5,822 lb
Max Speed	7.8 mph
Fuel Capacity	15.4 gal
Hydraulic System Fluid Capacity	14.5 gal
Operating Voltage	12 V
Alternator Supplied Amperage	85 A
Engine Oil Fluid Capacity	2.6 gal
Cooling System Fluid Capacity	2.6 gal
Chain Box Fluid Capacity - each side	1.6 gal
Breakout Force - Tilt Cylinder	4,083 lb
Rated Operating Capacity	1,500 lb
Tipping Load	3,000 lb
Rated Operating Capacity with Optional Counterweight	1,600 lb

Weights specifications
Operating Weight	5,822 lb

Hydraulic System specifications
Pump Flow Capacity	15.6 gal/min
Relief Valve Pressure	3,335 psi
Loader Hydraulic Pressure	3,335 psi
Loader Hydraulic Flow	15.6 gal/min
Hydraulic Power	30.4 hp
Maximum Loader Hydraulic Flow	26.0 gal/min
Hydraulic Flow (1)	Standard
Hydraulic Flow (2)	High Flow
Maximum Loader Hydraulic Pressure	3,335 psi

Dimensions specifications
Ground Clearance	8 in
Height - Top of Cab	78 in
Wheelbase	40 in
Width Over Tires	60 in
Reach at Max Lift and Dump	20 in
Length with Bucket on Ground	127 in
Length with Bucket	127 in
Clearance at Max Lift and Dump	85 in
Turning Radius from Center - inc bucket	76 in
Turning Radius from Center - machine rear	59 in
Length w/o Bucket	100 in
Length - without Bucket	99 in
Wheel Base	40 in
Bucket Pin Height - Maximum Lift	113 in
Maximum Overall Height	146 in
Clearance at Maximum Lift and Dump	85 in
Bucket Pin Height - Carry Position	9 in
Reach - Maximum Lift/Dump	20 in
Turn Radius from Center - Coupler	47 in
Turn Radius from Center - Bucket	76 in
Turn Radius from Center - Rear	59 in
Maximum Reach - With Arms Parallel	50 in
Rack Back Angle - Maximum Height	97 °
Departure Angle	26 °
Maximum Dump Angle	40 °
Vehicle Width over Tires	60 in
Bumper Overhang - Rear Axle	38 in
