Specifications
53 data points
Operating Specifications
| Operating Weight | 6,070 lb |
|---|---|
| Max Speed | 6.9 mph |
| Fuel Capacity | 17.2 gal |
| Hydraulic System Fluid Capacity | 14.6 gal |
| Operating Speed | 6.9 mph |
| Breakout Force - Tilt Cylinder | 3,907 lb |
| Rated Operating Capacity | 1,500 lb |
| Tipping Load | 3,000 lb |
| Rated Operating Capacity with Optional Counterweight | 1,600 lb |
| Breakout Force - Lift Cylinder | 3,129 lb |

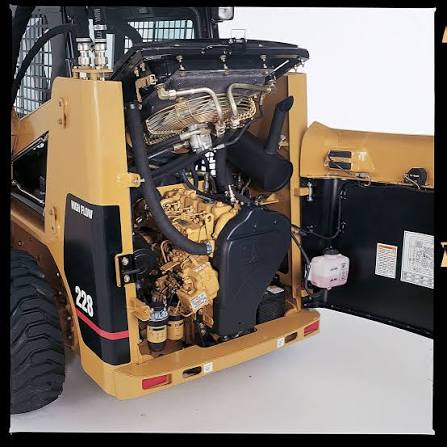

Engine
| Engine Model | Cat 3034C |
|---|---|
| Displacement | 183 in³ |
| Power Measured @ | 2,600 rpm |
| Number of Cylinders | 4 |
| Engine Make | Caterpillar |
| Stroke | 4 in |
| Bore | 4 in |
| Net Flywheel Power | 41.0 hp |
Weights
| Operating Weight | 5,843 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 30.2 gal/min |
|---|---|
| Loader Hydraulic Pressure | 3,300 psi |
| Loader Hydraulic Flow | 30.0 gal/min |
| Hydraulic Flow | Standard flow |
Dimensions
| Ground Clearance | 8 in |
|---|---|
| Wheelbase | 40 in |
| Width Over Tires | 61 in |
| Reach at Max Lift and Dump | 22 in |
| Length with Bucket on Ground | 127 in |
| Length with Bucket | 128 in |
| Clearance at Max Lift and Dump | 86 in |
| Turning Radius from Center - inc bucket | 81 in |
| Length w/o Bucket | 100 in |
| Length - without Bucket | 99 in |
| Wheel Base | 40 in |
| Bucket Pin Height - Maximum Lift | 113 in |
| Maximum Overall Height | 146 in |
| Clearance at Maximum Lift and Dump | 84 in |
| Bucket Pin Height - Carry Position | 9 in |
| Reach - Maximum Lift/Dump | 20 in |
| Vehicle Width over Tires | 60 in |
| Bumper Overhang - Rear Axle | 38 in |
Cab & Operator
| FOPS | SAEJ/ISO 3449 APR98 Level I and ISO3449:1992 Level I |
|---|---|
| ROPS | SAE J1040 MAY94 and ISO3471:1994 |
| FOPS Level II | SAEJ/ISO 3449 APR 98 Level II and ISO 3449:1992 Level II (optional) |
Loader
| Bucket Capacity | 0.60 yd³ |
|---|---|
| Operating Load Rating | 1,500 lb |
| Tipping Angle | 2,800 ° |
Service Refill Capacities
| Cooling System | 2.6 gal |
|---|---|
| Hydraulic Tank | 9.2 gal |
| Fuel Tank | 17.0 gal |
| Chain Box - Each Side | 1.6 gal |
| Engine Crankcase | 1.8 gal |
| Hydraulic System | 14.5 gal |
