Caterpillar

232

Skid Steer Loader

Operating Weight
6,931 lb
Bucket Capacity
0.60 yd³
Max Speed
6.2 mph
All skid steer loaders

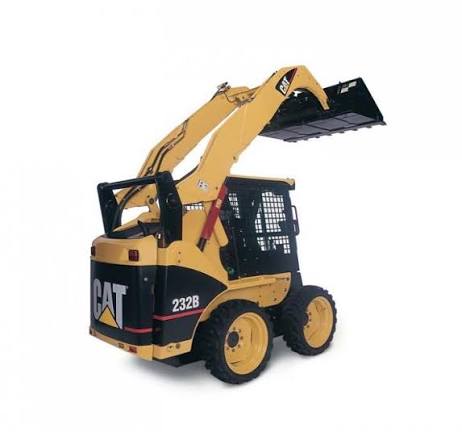

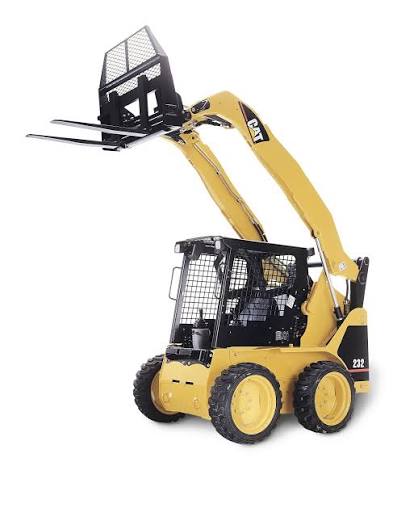

Caterpillar 232 Skid Steer Loader
1 / 5
Image 1 of 5
Image: cat.com

Specifications

52 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,931 lb
Max Speed6.2 mph
Fuel Capacity17.2 gal
Hydraulic System Fluid Capacity14.6 gal
Operating Speed6.2 mph
Breakout Force - Tilt Cylinder4,056 lb
Rated Operating Capacity1,750 lb
Tipping Load3,500 lb
Rated Operating Capacity with Optional Counterweight1,795 lb
Breakout Force - Lift Cylinder3,814 lb

Engine

Engine specifications
Engine ModelCat 3034C
Displacement134 in³
Power Measured @3,000 rpm
Number of Cylinders4
Engine MakeCaterpillar
Bore3 in
Stroke4 in
Net Flywheel Power48.0 hp

Weights

Weights specifications
Operating Weight6,740 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity14.6 gal/min
Loader Hydraulic Pressure3,100 psi
Loader Hydraulic Flow14.7 gal/min

Dimensions

Dimensions specifications
Ground Clearance6 in
Wheelbase43 in
Width Over Tires61 in
Reach at Max Lift and Dump30 in
Length with Bucket on Ground135 in
Length with Bucket135 in
Clearance at Max Lift and Dump93 in
Turning Radius from Center - inc bucket89 in
Length w/o Bucket109 in
Length - without Bucket109 in
Wheel Base43 in
Bucket Pin Height - Maximum Lift119 in
Clearance at Maximum Lift and Dump87 in
Bucket Pin Height - Carry Position10 in
Maximum Overall Height153 in
Reach - Maximum Lift/Dump29 in
Vehicle Width over Tires60 in
Bumper Overhang - Rear Axle39 in

Cab & Operator

Cab & Operator specifications
ROPSSAE J1040 MAY94 and ISO3471:1994
FOPSSAEJ/ISO 3449 APR98 Level I and ISO3449:1992 Level I
FOPS Level IISAEJ/ISO 3449 APR 98 Level II and ISO 3449:1992 Level II (optional)

Loader

Loader specifications
Bucket Capacity0.60 yd³
Operating Load Rating1,750 lb
Tipping Angle3,633 °

Service Refill Capacities

Service Refill Capacities specifications
Cooling System2.4 gal
Hydraulic Tank9.2 gal
Fuel Tank18.2 gal
Chain Box - Each Side1.6 gal
Engine Crankcase2.1 gal
Hydraulic System15.3 gal
