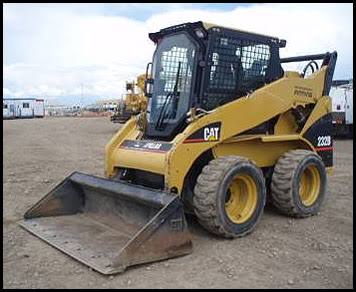

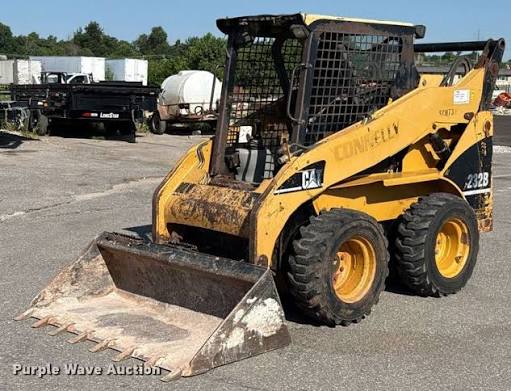

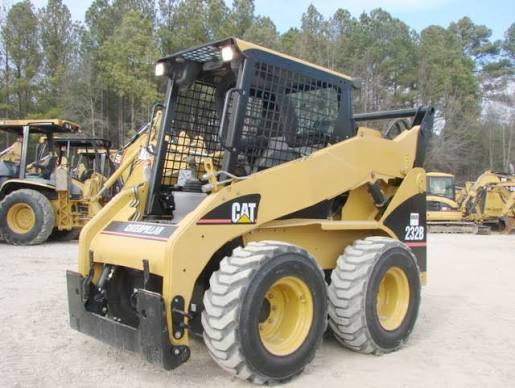

232B

Specifications

71 data points

Operating Specifications specifications
Operating Weight	6,660 lb
Max Speed	6.9 mph
Fuel Capacity	17.2 gal
Hydraulic System Fluid Capacity	14.6 gal
Tire Size	10x16.5 8PR
Operating Voltage	12 V
Alternator Supplied Amperage	65 A
Engine Oil Fluid Capacity	2.2 gal
Cooling System Fluid Capacity	2.7 gal
Chain Box Fluid Capacity - each side	1.6 gal
Breakout Force - Tilt Cylinder	4,059 lb
Rated Operating Capacity	1,750 lb
Tipping Load	3,955 lb
Rated Operating Capacity with Optional Counterweight	1,795 lb
Breakout Force - Lift Cylinder	3,841 lb

Weights specifications
Operating Weight	6,661 lb

Dimensions specifications
Ground Clearance	6 in
Height - Top of Cab	78 in
Wheelbase	43 in
Width Over Tires	60 in
Reach at Max Lift and Dump	30 in
Length with Bucket on Ground	135 in
Length with Bucket	135 in
Clearance at Max Lift and Dump	89 in
Turning Radius from Center - inc bucket	88 in
Turning Radius from Center - machine rear	61 in
Length w/o Bucket	109 in
Length - without Bucket	109 in
Wheel Base	43 in
Bucket Pin Height - Maximum Lift	120 in
Maximum Overall Height	153 in
Clearance at Maximum Lift and Dump	88 in
Bucket Pin Height - Carry Position	10 in
Reach - Maximum Lift/Dump	30 in
Turn Radius from Center - Coupler	57 in
Turn Radius from Center - Bucket	87 in
Turn Radius from Center - Rear	61 in
Maximum Reach - With Arms Parallel	48 in
Vehicle Width over Tires	60 in
Bumper Overhang - Rear Axle	39 in

Cab & Operator specifications
FOPS	SAEJ/ISO 3449 APR98 Level I and ISO3449:1992 Level I
ROPS	SAE J1040 MAY94 and ISO3471:1994
FOPS Level II	SAEJ/ISO 3449 APR 98 Level II and ISO 3449:1992 Level II (optional)
