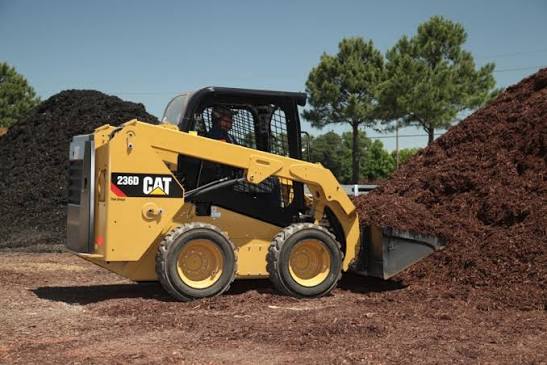

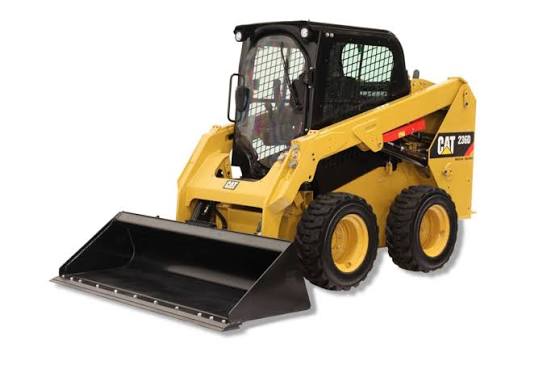

236D

Specifications

66 data points

Operating Specifications specifications
Operating Weight	6,559 lb
Max Speed	10.6 mph
Fuel Capacity	27.7 gal
Hydraulic System Fluid Capacity	13.2 gal
Cooling System Fluid Capacity	3.7 gal
Chain Box Fluid Capacity - each side	2.3 gal
Operating Speed	7.0 mph
Breakout Force - Tilt Cylinder	5,074 lb
Rated Operating Capacity	1,800 lb
Tipping Load	3,600 lb
Rated Operating Capacity with Optional Counterweight	2,000 lb

Weights specifications
Operating Weight	6,559 lb

Hydraulic System specifications
Pump Flow Capacity	20.0 gal/min
Relief Valve Pressure	3,335 psi

Dimensions specifications
Ground Clearance	8 in
Height - Top of Cab	83 in
Wheelbase	44 in
Width Over Tires	66 in
Reach at Max Lift and Dump	16 in
Length with Bucket on Ground	137 in
Length with Bucket	138 in
Clearance at Max Lift and Dump	94 in
Turning Radius from Center - inc bucket	85 in
Length w/o Bucket	109 in
Length - without Bucket	109 in
Wheel Base	44 in
Bucket Pin Height - Maximum Lift	124 in
Bucket Pin Height - Carry Position	8 in
Maximum Overall Height	157 in
Clearance at Maximum Lift and Dump	93 in
Reach - Maximum Lift/Dump	16 in
Turn Radius from Center - Coupler	52 in
Turn Radius from Center - Bucket	83 in
Rack Back Angle - Maximum Height	91 °
Departure Angle	26 °
Maximum Dump Angle	48 °
Vehicle Width over Tires	66 in
Bumper Overhang - Behind Rear Axle	40 in
Turn Radius from Center - Machine Rear	65 in

General Specifications specifications
Engine Power HP (KW)	66 (49) Starting 2019 Model Year
Operating Width IN. (CM)	66 (168) Starting 2019 Model Year
OPERATING LOAD LBS. (KG)	1,800 (817) Starting 2016 Model Year
Rated Operating Capacity LBS (KG) 50%	1,800 (817) Starting 2019 Model Year

Air Conditioning System specifications
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
