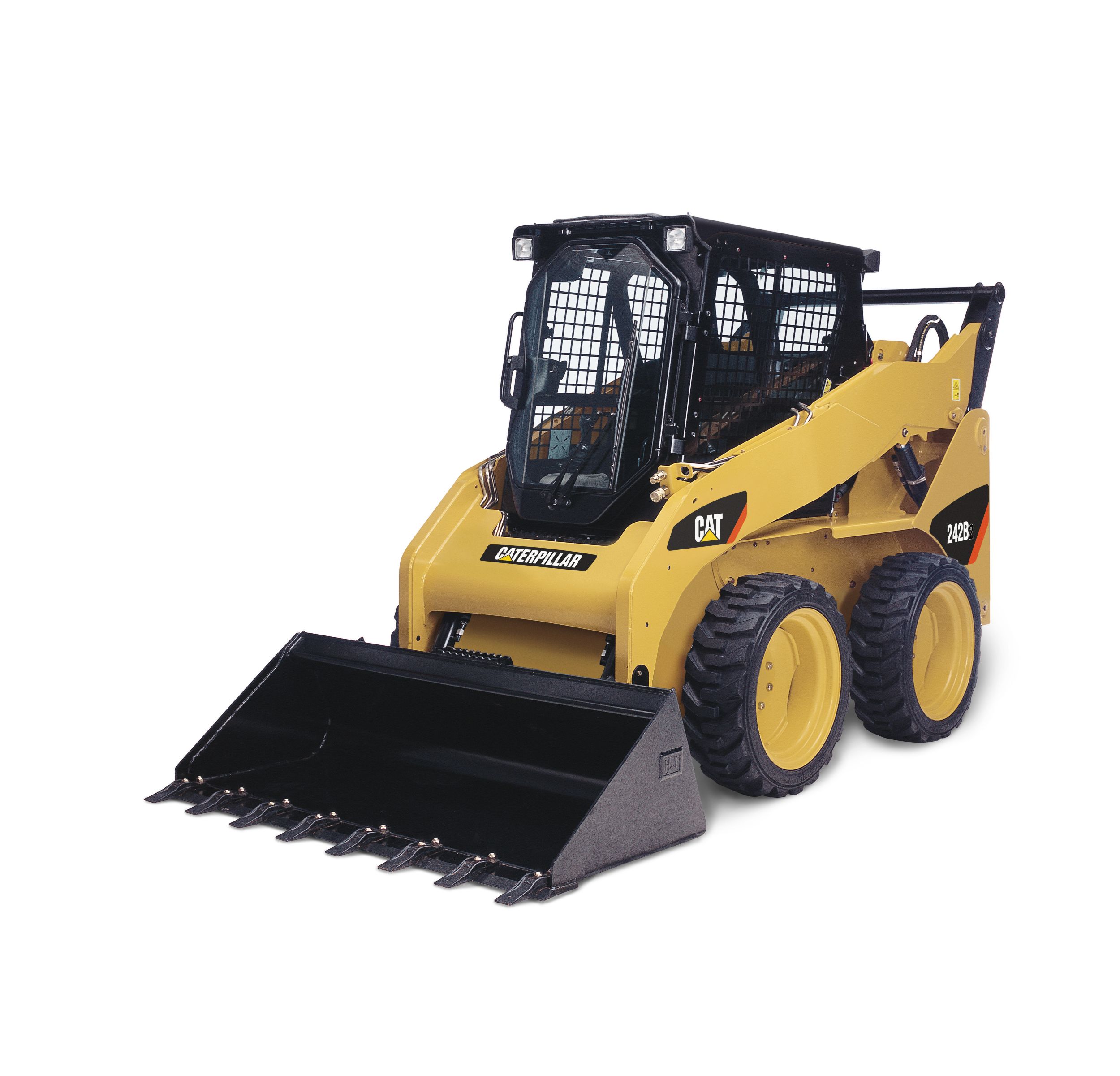

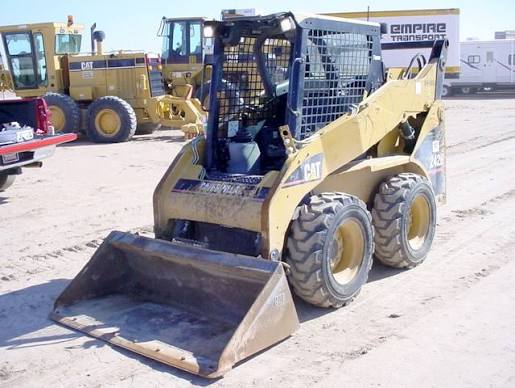

242B

Specifications

72 data points

Operating Specifications specifications
Operating Weight	6,801 lb
Max Speed	7.5 mph
Fuel Capacity	17.2 gal
Hydraulic System Fluid Capacity	14.6 gal
Tire Size	12x16.5 10PR
Operating Voltage	12 V
Alternator Supplied Amperage	85 A
Engine Oil Fluid Capacity	2.2 gal
Cooling System Fluid Capacity	2.7 gal
Chain Box Fluid Capacity - each side	1.6 gal
Breakout Force - Tilt Cylinder	4,059 lb
Rated Operating Capacity	2,000 lb
Tipping Load	4,000 lb
Rated Operating Capacity with Optional Counterweight	2,047 lb
Breakout Force - Lift Cylinder	3,841 lb

Weights specifications
Operating Weight	6,802 lb

Hydraulic System specifications
Pump Flow Capacity	15.9 gal/min
Relief Valve Pressure	3,336 psi
Loader Hydraulic Pressure	3,335 psi
Loader Hydraulic Flow	15.6 gal/min
Maximum Loader Hydraulic Flow	26.0 gal/min
Hydraulic Flow (1)	Standard flow
Hydraulic Flow (2)	High Flow

Dimensions specifications
Ground Clearance	7 in
Wheelbase	43 in
Width Over Tires	66 in
Reach at Max Lift and Dump	30 in
Length with Bucket on Ground	135 in
Length with Bucket	135 in
Clearance at Max Lift and Dump	90 in
Turning Radius from Center - inc bucket	88 in
Turning Radius from Center - machine rear	61 in
Length w/o Bucket	109 in
Length - without Bucket	109 in
Wheel Base	43 in
Bucket Pin Height - Maximum Lift	120 in
Maximum Overall Height	155 in
Bucket Pin Height - Carry Position	12 in
Clearance at Maximum Lift and Dump	88 in
Reach - Maximum Lift/Dump	30 in
Turn Radius from Center - Coupler	57 in
Turn Radius from Center - Bucket	87 in
Turn Radius from Center - Rear	61 in
Maximum Reach - With Arms Parallel	48 in
Vehicle Width over Tires	66 in
Bumper Overhang - Rear Axle	39 in

Cab & Operator specifications
FOPS	SAEJ/ISO 3449 APR98 Level I and ISO3449:1992 Level I
ROPS	SAE J1040 MAY94 and ISO3471:1994
FOPS Level II	SAEJ/ISO 3449 APR 98 Level II and ISO 3449:1992 Level II (optional)
